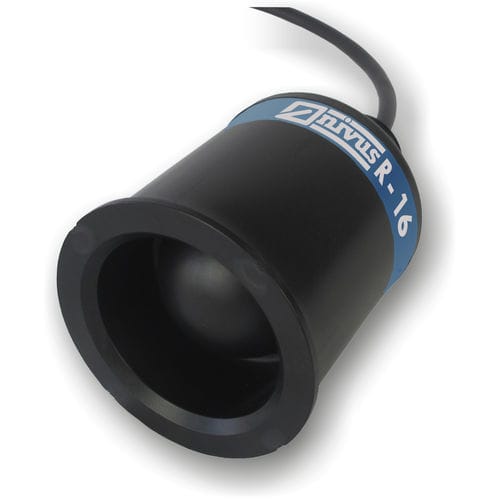

FMCW radar level sensor R
for liquidsbulk solidsanalog

FMCW radar level sensor
FMCW radar level sensor
FMCW radar level sensor
Add to favorites
Compare this product


Characteristics

Technology
FMCW radar
Medium
for liquids, bulk solids
Interface
analog
Applications
for fill monitoring
Other characteristics
compact, rugged, submersible, explosion-proof, IP68
Level range

Max.: 16 m
(52'05" )

Min.: 0.07 m
(0'02" )

Process temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

Radar sensor for continuous and contactless level measurement in liquids, pastes, sludges and bulk solids -Latest FMCW radar technology with 63 GHz -Insensitive to gas, pressure, mists or temperature fluctuations -Compatible with all NivuMaster versions -Measures through plastic containers -Compact and easy to install -Robust and flood-proof IP68 housing -ATEX Approval for Zone 0/1 The new R-Sensor is a radar sensor for continuous and contactless level measurement in liquids, pastes, sludges and bulk solids. Measurements are not affected by changing media, temperature fluctuations, gas ­overlays or vapours. The radar sensor utilises the latest 63 GHz FMCW technology which, compared to pulsed radar methods, has several advantages: -Improved spatial allocation -Larger dynamic range -More reliable surface detection Therefore, it is very easy to retrofit existing equipment setups after updating the firmware. R-Series sensors provide accurate measurement values in closed tanks or outdoor applications (e. g. dams, rivers etc.). A very low dead zone and the narrow beam angle allow for reliable measurements even in confined spaces.
