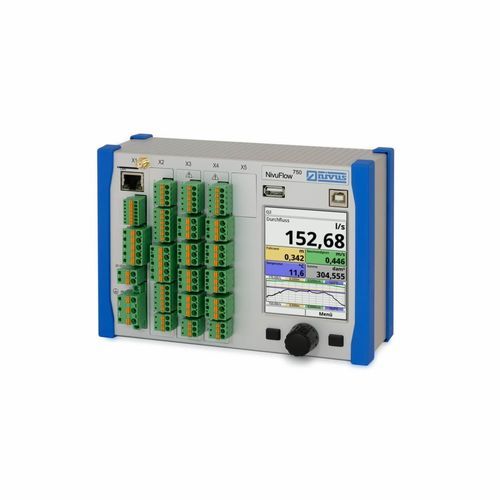

Ultrasonic flow meter NivuFlow 750
volumefor waterportable

Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable
Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable
Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable - image - 2
Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable - image - 3
Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable - image - 4
Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable - image - 5
Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable - image - 6
Ultrasonic flow meter - NivuFlow 750  - NIVUS GmbH - volume / for water / portable - image - 7
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Type
volume
Fluid
for water
Installation
portable
Material
aluminum, plastic
Communication
4-20 mA, Modbus
Supply voltage
240 VAC
Protection level
IP67, IP68, IP20
Other characteristics
compact, digital, precision, with display, combined, stand-alone
Process temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Description

For ultrasonic flow measurement of slight to heavily polluted media in part filled and full pipes and channels. Best possible results even under difficult conditions. -Very high accuracy flow meter by means of ultrasonic cross correlation method -Certified according to MCERTS - Sira MC160303/00 -Up to 3 measurement spots as well as up to 9 flow sensors (Version M9) -Real-time indication of real flow velocity profiles -Suitable even for very demanding applications -Intuitive, modern operating concept for quick and easy commissioning -Large colour graphic display -Integrated numeric flow models -Ultrasonic flow measurement in all channels, part filled and full pipes as well as flumes -No calibration required -Comprehensive diagnostic functions for reliable commissioning and quick maintenance -Spatial allocation of measured single velocities -Compact DIN rail flow meter for narrow switching cabinets -Field enclosure with large terminal housing for comfortable installation on site -Quick wiring thanks to front-side access -Universal standardised interfaces for easy connection -IoT-ready with global 4G connectivity for highest availability and digital services -Energy-saving cycle operation for self-sufficient systems Flow metering at the highest technical level The NivuFlow 750 flow meter is the successor to the well-known OCM Pro CF. Compact dimensions of the flowmeter allow DIN-rail installation and installation in switching cabinets even under confined space conditions and in narrow housings.
