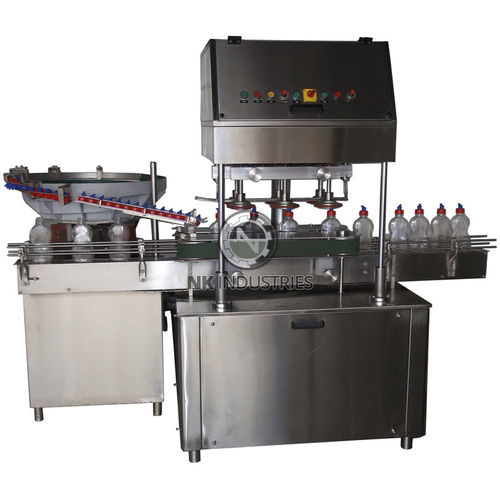

Linear screw capping machine NKLC-100
automaticfor chemical productsfor cosmetic products

linear screw capping machine
linear screw capping machine
Add to favorites
Compare this product


Characteristics

Type
linear
Operating mode
automatic
Product applications
for chemical products, for cosmetic products, for hygiene products, for SMT pick & place machines, for food products, multi-container
Application field
for the food industry, for the chemical industry, for the beverage industry, for the pharmaceutical industry
Other characteristics
digital, in-line
Throughput

Min.: 30 p/min

Max.: 60 p/min

Description

N.K Industries is manufacturer, exporter and supplier of range of Automatic Inline linear Screw Capping Machine. We have diverse range of Automatic inline linear Screw capping machine that serve various purposes. Our inline capping machines Model NKLC-100 are very flexible capping machine and can handle a wide range of containers and caps without any change-parts for bottle sizes. Our entire inline capping machine comes standard with spring loaded tightening capping discs. Inline Screw Cappers consist of two components: the base cap tightening unit and the cap sorting system with chute. When integrated together it becomes an automatic capper. The distinctive feature of our Automatic inline linear Screw capping machine is “no bottle no cap system “and “no change part required” for change in bottle size. • cGMP Model, Compact Model. • Parts Coming In Contact With Bottle / Screw Cap Are Made Out Of AISI 304 • A Special Background Suppression Sensor Stops Machine Automatically In The Event, There Is No Screw Cap In Delivery Chute. • 3 Sets Of Tightening Discs • Various Cap Feeding Option Available Like Vibrator Feeder System, Mechanical Cap Feeder Orientator Or Water Fall Type Elevator. • Tool Less Adjust For Change In Bottle Size. • Distinctively Designed Position System Prevents From Cap Being Jammed. • 6 Digit Precise Counting Arrangement Helps To Manage Production Process. • Equipped With Emergency Button For Safety Distress. • All Electrical & Brought Out Items Are Of CE Certified. PLC - HMI Interface Cap Feeder Elevator Toughened Glass Or Acrylic Safety Cabinet For Machine. Operating Direction Left To Write Output 30 To 60 BPM
