Electric chamfering and deburring machine B5
hand-heldfor metal

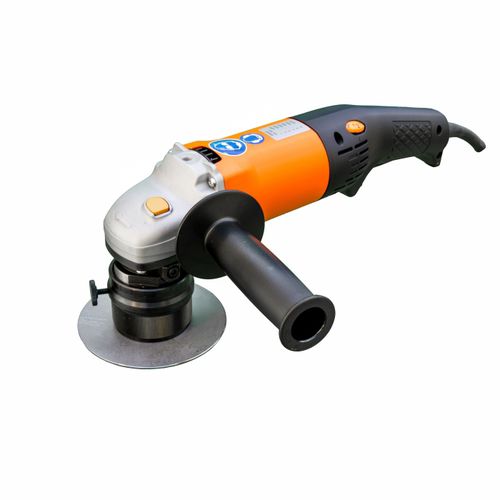

Electric chamfering and deburring machine - B5 - NKO MACHINES - hand-held / for metal
Electric chamfering and deburring machine - B5 - NKO MACHINES - hand-held / for metal
Electric chamfering and deburring machine - B5 - NKO MACHINES - hand-held / for metal - image - 2
Electric chamfering and deburring machine - B5 - NKO MACHINES - hand-held / for metal - image - 3
Electric chamfering and deburring machine - B5 - NKO MACHINES - hand-held / for metal - image - 4
Electric chamfering and deburring machine - B5 - NKO MACHINES - hand-held / for metal - image - 5
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
hand-held
Applications
for metal
Power

1,300 W
(1.77 hp)

Rotational speed

Max.: 11,000 rpm
(69,115.04 rad.min-1)

Min.: 4,200 rpm
(26,389.38 rad.min-1)

Chamfer width

Max.: 5 mm
(0.2 in)

Min.: 0 mm
(0 in)

Chamfer angle

45 °, 60 °

Description

For the deburring of outer and inner outlines, bevelling, milling of radius and bore holes as from 20 mm Ø. Especially developed to produce clean visible edges and to prepare welds. Tool-less adjustment of bevel height. Handy and powerful. For construction steels, stainless steels, aluminium and other materials. Multiple indexable insert holder 45° (optional 60°). Also for radius R = 2.5

VIDEO

Catalogs

B5
B5
2 Pages
