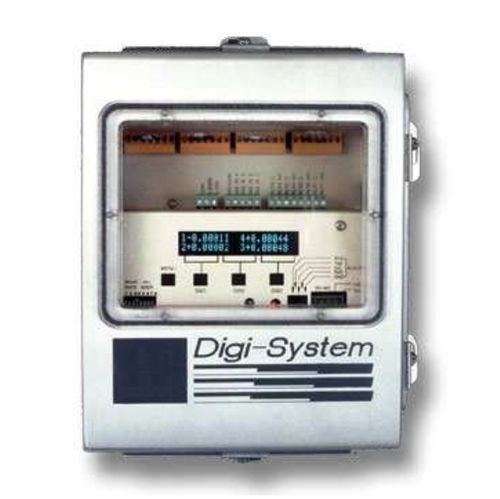

Tension transmitter DXt-40

DXt-40 Tension Transmitters measure up to four independent web points, or zones, to ensure maximum operating speeds without belt, felt, or product breakage. Each zone is precisely measured with 750,000 count resolution and produces a corresponding, high resolution, 4-20mA output. Total, individual, and differential outputs from two transducers (load cells) permit a comparison of tension signals on either side of a sheet, strip, or web. Digital calibration eliminates time consuming dead weight loading and machine "strapping". With four integral operating modes, DXt-40 transmitters offer wide operating flexibility and easy installation. Simply select the mode that matches your application, enter the transducer zero and span values, and begin system operation. When combined with unique HTU transducers, units measure both horizontal and vertical tension vectors. Based upon both measurements, software algorithms calculate the precise, resultant force vector and exact linear tension component. Applications: Pulp & paper machinery Roofing Machines Converting Equipment Mining conveyors Winders, rewinders, laminators, coaters, dryers, felts •Individually digitized transducer forces •View left, right, and total tension values •100% digital calibration - no dead weight loading •no strapping •Diagnostics significantly reduce downtime •Dynamic Digital Filtering for each tension zone •Measure resultant force (Fr) and angle of inclination for any or all wrap angles (HTU version only)
