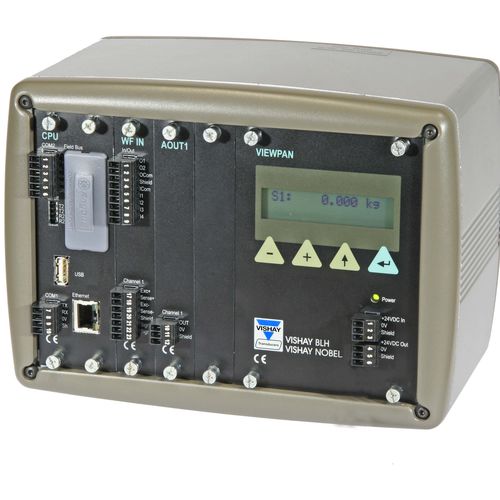

Digital weight indicator-transmitter BLH G4-RM

DIN railIP20Ethernet

The Nobel - BLH G4-RM family of process control instruments offers high speed, high performance control for industrial weighing and force measurement applications plant wide. G4-RM units set new standards geared for today's application demands and tomorrow's expanding requirements. G4-RM instruments accommodate up to three different, easily installed, modules for advanced performance, more functional channels, custom applications, or repair. This provides customers with a highly flexible, upgradeable, single instrument system capable of weighing up to six independent vessels or scales. For web tension applications, up to six zones (rolls) can be monitored simultaneously. Inputs and outputs can be configured according to customer requirements. A wide variety of industrial communication interfaces (Ethernet, RS232, RS485), Protocols (Modbus RTU, Modbus TCP, EtherNet/IP) and Fieldbuses (Profibus or Devicenet) are available. Software upgrades can be downloaded to the instrument from our website, or be trans- ferred to the G4-RM unit via a standard USB port connection. Custom software designed to customer requirements for special applications is available upon request. DIN Rail mount units are rated IP20. Power supply is 24V DC. • DIN Rail mount • Modular system with flexible configuration • Up to 6 weighing / force measurement channels per unit • Synchronized sampling of all channels • Fast update rate - up to 800 updates per second • Easy access to service and control panel • Integrated flexible digital I/O • Communication: Ethernet, Profibus, DeviceNet, Modbus, USB, RS485, RS232, Modbus/TCP, EtherNet/IP
