- Packing - Handling - Logistics
- Handling and Lifting
- Electric forklift
- Noblelift Intelligent Equipment Co., Ltd.

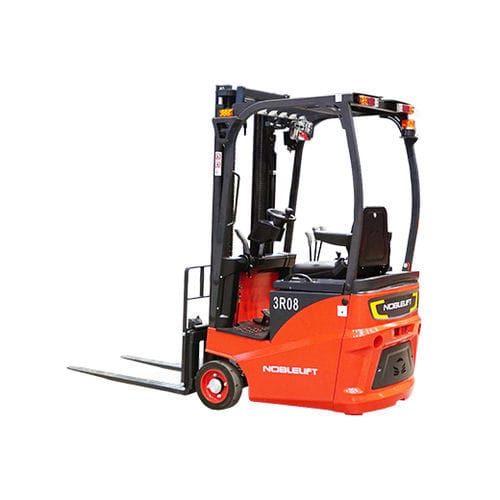

Electric forklift FE3R N seriesride-onhandlingcounterbalanced
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling
- Other characteristics
- counterbalanced, compact, 3-wheel, light-duty
- Carrying capacity
Max.: 1,200 kg
(2,645.5 lb)Min.: 800 kg
(1,763.7 lb)- Lifting height
Max.: 5,000 mm
(196.85 in)Min.: 2,500 mm
(98.43 in)- Overall width
880 mm
(34.6 in)- Overall length
2,290 mm, 2,400 mm, 2,460 mm
(90.2 in, 94.5 in, 96.9 in)- Load center distance
500 mm
(19.7 in)- Weight without load
1,800 kg, 1,910 kg, 2,080 kg
(3,968.3 lb, 4,210.8 lb, 4,585.6 lb)- Axle loading with maximum load front
2,300 kg, 2,600 kg, 2,950 kg
(5,070.6 lb, 5,732 lb, 6,503.6 lb)- Axle loading with maximum load rear
300 kg, 310 kg, 330 kg
(661.4 lb, 683.4 lb, 727.5 lb)- Axle loading without load front
770 kg, 850 kg, 880 kg
(1,697.6 lb, 1,873.9 lb, 1,940.1 lb)- Axle loading without load rear
1,020 kg, 1,060 kg, 1,220 kg
(2,248.7 lb, 2,336.9 lb, 2,689.6 lb)- Track width front
765 mm
(30.1 in)- Height of mast when lowered
1,965 mm
(77.4 in)- Free lift
95 mm
(3.7 in)- Overall height with mast raised
3,865 mm
(152.2 in)- Height to top of overhead guard
1,975 mm
(77.8 in)- Seat height
980 mm
(38.6 in)- Tow couplig height
540 mm
(21.3 in)- Length to fork face
1,370 mm, 1,480 mm, 1,545 mm
(53.9 in, 58.3 in, 60.8 in)- Fork carriage width
825 mm
(32.5 in)- Ground clearance under mast with load
80 mm
(3.1 in)- Ground clearance at center of wheelbase with load
90 mm
(3.5 in)- Turning circle radius
1,160 mm, 1,320 mm, 1,350 mm
(45.7 in, 52 in, 53.1 in)- Travel speed
7 km/h, 7.5 km/h, 8 km/h, 9 km/h
(4.3 mph, 4.7 mph, 5 mph, 5.6 mph)- Lifting speed
0.2 m/s, 0.3 m/s
(0.656 ft/s, 0.984 ft/s)- Lowering speed
0.2 m/s
(0.656 ft/s)- Rated drawbar pull
1,500 N, 1,700 N, 1,800 N, 2,300 N
- Gradeability
6 %, 10 %
- Rated output
2.5 kW, 3 kW
(3.4 hp, 4.1 hp)- Maximum operating pressure
11.5 MPa, 13.5 MPa, 15.5 MPa
- Oil flow
16 l/min
(4.2 us gal/min)- Noise level
70 dB
Description
FE3R08-12N series is a light-duty rear-drive counterbalanced electric forklift with threewheels.
Based on ergonomics, the design of theforklift adopts the international concept offashion and technology.
With compact size andexcellent operating flexibility and comfort,easy-maintenance and operation, and high reliability, it is the ideal choice for various applications.
