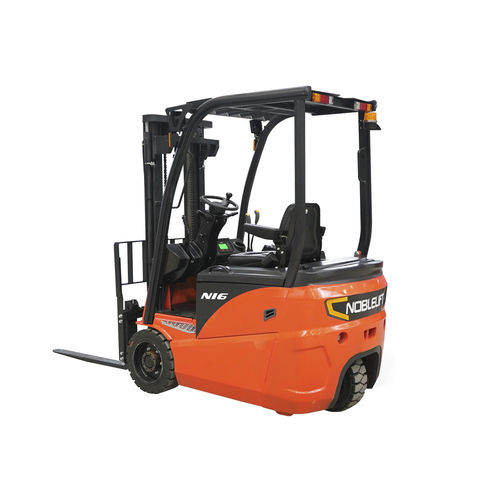

Electric forklift FE3R N seriesride-onindustrialcounterbalanced
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- industrial
- Other characteristics
- counterbalanced, compact, 3-wheel, light-duty
- Carrying capacity
1,600 kg
(3,527.4 lb)- Lifting height
Min.: 2,500 mm
(98.43 in)Max.: 5,000 mm
(196.85 in)- Overall width
1,000 mm
(39.4 in)- Overall length
2,750 mm
(108.3 in)- Load center distance
500 mm
(19.7 in)- Weight without load
3,000 kg
(6,613.9 lb)- Axle loading with maximum load front
4,000 kg
(8,818.5 lb)- Axle loading with maximum load rear
600 kg
(1,322.8 lb)- Axle loading without load front
1,280 kg
(2,821.9 lb)- Axle loading without load rear
1,720 kg
(3,792 lb)- Track width front
822 mm
(32.4 in)- Height of mast when lowered
1,997 mm
(78.6 in)- Free lift
105 mm
(4.1 in)- Overall height with mast raised
3,980 mm
(156.7 in)- Height to top of overhead guard
2,060 mm
(81.1 in)- Seat height
1,050 mm
(41.3 in)- Tow couplig height
570 mm
(22.4 in)- Length to fork face
1,865 mm
(73.4 in)- Fork carriage width
980 mm
(38.6 in)- Ground clearance under mast with load
92 mm
(3.6 in)- Ground clearance at center of wheelbase with load
97 mm
(3.8 in)- Turning circle radius
1,500 mm
(59.1 in)- Travel speed
10 km/h, 11 km/h
(6.2 mph, 6.8 mph)- Lifting speed
0.2 m/s, 0.4 m/s
(0.656 ft/s, 1.312 ft/s)- Lowering speed
0.6 m/s
(1.969 ft/s)- Rated drawbar pull
2,800 N, 8,000 N
- Gradeability
10 %, 13 %
- Rated output
5 kW
(6.8 hp)- Maximum operating pressure
16 MPa
- Oil flow
30 l/min
(7.9 us gal/min)- Noise level
70 dB
Description
FERN series is a light-duty rear-drive counterbalanced electric forklift with threewheels.
Based on ergonomics, the design of theforklift adopts the international concept offashion and technology. With compact size andexcellent operating flexibility and comfort,easy-maintenance and operation, and high reliability, it is the ideal choice for various applications.
