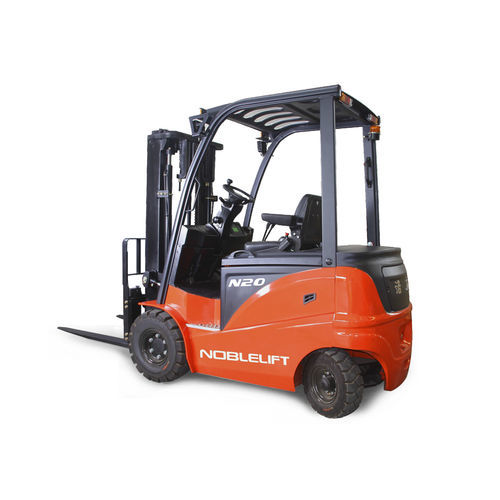

Electric forklift FE4P N seriesride-onindustrial4-wheel
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- industrial
- Other characteristics
- 4-wheel
- Carrying capacity
Max.: 3,500 kg
(7,716.2 lb)Min.: 1,600 kg
(3,527.4 lb)- Lifting height
Max.: 6,000 mm
(236.22 in)Min.: 2,500 mm
(98.43 in)- Overall width
1,150 mm, 1,260 mm, 1,290 mm
(45.3 in, 49.6 in, 50.8 in)- Overall length
3,220 mm, 3,700 mm, 3,802 mm, 3,872 mm
(126.8 in, 145.7 in, 149.7 in, 152.4 in)- Load center distance
500 mm
(19.7 in)- Weight without load
Max.: 5,340 kg
(11,772.7 lb)Min.: 3,100 kg
(6,834.3 lb)- Axle loading with maximum load front
Max.: 7,770 kg
(17,129.9 lb)Min.: 4,160 kg
(9,171.2 lb)- Axle loading with maximum load rear
Max.: 1,070 kg
(2,358.9 lb)Min.: 540 kg
(1,190.5 lb)- Axle loading without load front
Max.: 2,210 kg
(4,872.2 lb)Min.: 1,500 kg
(3,306.9 lb)- Axle loading without load rear
Max.: 3,130 kg
(6,900.5 lb)Min.: 1,600 kg
(3,527.4 lb)- Track width front
970 mm, 1,040 mm, 1,058 mm
(38.2 in, 40.9 in, 41.7 in)- Track width rear
920 mm, 950 mm, 960 mm
(36.2 in, 37.4 in, 37.8 in)- Height of mast when lowered
2,000 mm, 2,045 mm
(78.7 in, 80.5 in)- Free lift
120 mm, 129 mm, 140 mm
(4.7 in, 5.1 in, 5.5 in)- Overall height with mast raised
3,977 mm, 3,983 mm
(156.6 in, 156.8 in)- Height to top of overhead guard
2,190 mm, 2,195 mm, 2,205 mm
(86.2 in, 86.4 in, 86.8 in)- Seat height
1,100 mm, 1,110 mm
(43.3 in, 43.7 in)- Tow couplig height
290 mm, 295 mm
(11.4 in, 11.6 in)- Length to fork face
2,061 mm, 2,323 mm, 2,328 mm, 2,535 mm, 2,575 mm
(81.1 in, 91.5 in, 91.7 in, 99.8 in, 101.4 in)- Fork carriage width
1,040 mm, 1,100 mm
(40.9 in, 43.3 in)- Ground clearance under mast with load
100 mm, 110 mm
(3.9 in, 4.3 in)- Ground clearance at center of wheelbase with load
110 mm, 120 mm
(4.3 in, 4.7 in)- Turning circle radius
2,100 mm, 2,230 mm, 2,450 mm, 2,520 mm
(82.7 in, 87.8 in, 96.5 in, 99.2 in)- Travel speed
12 km/h, 13 km/h, 14 km/h, 15 km/h
(7.5 mph, 8.1 mph, 8.7 mph, 9.3 mph)- Lifting speed
Max.: 0.4 m/s
(1.312 ft/s)Min.: 0.3 m/s
(0.984 ft/s)- Lowering speed
0.6 m/s
(1.969 ft/s)- Rated drawbar pull
Max.: 17,000 N
Min.: 12,700 N
- Gradeability
13 %, 15 %
- Rated output
6.8 kW, 11 kW, 15 kW
(9.2 hp, 15 hp, 20.4 hp)- Maximum operating pressure
17.5 MPa
- Oil flow
36 l/min
(9.5 us gal/min)- Noise level
72 dB, 73 dB, 74 dB
Description
The creative, dynamic and elegant design of its appearance makes it a fashion private ride for the operators, the robust metal molding of the exterior covers delivers styling as well as safety. Excellent ergonomic design delivers great reliability, easy maintenance, efficient and comfort operation, safe and environmental friendlily.
