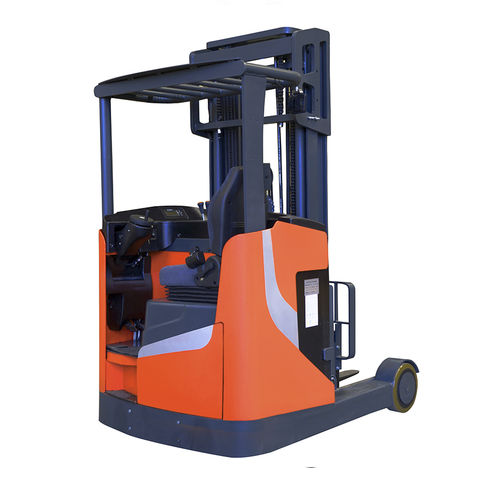

Electric reach truck RT series
side-facing seatedhandlingfor warehouse

Electric reach truck - RT series - Noblelift Intelligent Equipment Co., Ltd. - side-facing seated / handling / for warehouse
Electric reach truck - RT series - Noblelift Intelligent Equipment Co., Ltd. - side-facing seated / handling / for warehouse
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
side-facing seated
Applications
handling, for warehouse, industrial
Other characteristics
high-performance, high-speed, low-noise
Carrying capacity

1,400 kg, 1,600 kg, 2,000 kg
(3,086.5 lb, 3,527.4 lb, 4,409.2 lb)

Lifting height

Min.: 2,500 mm
(98.43 in)

Max.: 8,000 mm
(314.96 in)

Overall width

1,260 mm
(49.6 in)

Overall length

2,260 mm, 2,285 mm, 2,350 mm
(89 in, 90 in, 92.5 in)

Load center distance

600 mm
(23.6 in)

Weight without load

2,900 kg, 3,000 kg, 3,400 kg
(6,393.4 lb, 6,613.9 lb, 7,495.7 lb)

Axle loading with maximum load front

600 kg, 1,900 kg
(1,322.8 lb, 4,188.8 lb)

Axle loading with maximum load rear

3,600 kg, 4,800 kg
(7,936.6 lb, 10,582.2 lb)

Axle loading without load front

2,200 kg
(4,850.2 lb)

Axle loading without load rear

1,200 kg
(2,645.5 lb)

Track width front

1,124 mm
(44.3 in)

Track width rear

1,124 mm
(44.3 in)

Height of mast when lowered

2,335 mm
(91.9 in)

Free lift

1,420 mm
(55.9 in)

Overall height with mast raised

5,915 mm
(232.9 in)

Height to top of overhead guard

2,160 mm
(85 in)

Length to fork face

1,190 mm, 1,215 mm, 1,280 mm
(46.9 in, 47.8 in, 50.4 in)

Ground clearance under mast with load

75 mm
(3 in)

Ground clearance at center of wheelbase with load

75 mm
(3 in)

Turning circle radius

1,600 mm, 1,655 mm, 1,750 mm
(63 in, 65.2 in, 68.9 in)

Travel speed

10.5 km/h
(6.5 mph)

Lifting speed

0.3 m/s, 0.4 m/s
(0.984 ft/s, 1.312 ft/s)

Lowering speed

0.4 m/s
(1.312 ft/s)

Gradeability

10 %, 15 %

Rated output

6.4 kW
(8.7 hp)

Maximum operating pressure

150 bar
(2,175.6 psi)

Oil flow

35 l/min, 38 l/min
(9.2 us gal/min, 10 us gal/min)

Noise level

70 dB

Description

RT series Sit-on Reach Truck is a high performance truck with high efficiency and excellent safety. lt is equipped with intelligent System and integrated with safety components to ensure the most efficient operations in big warehouse.
