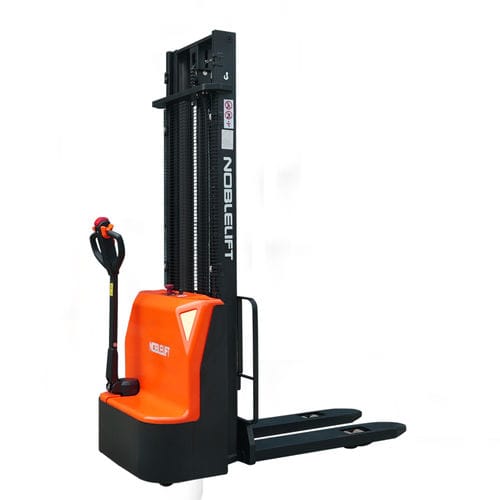

Electric stacker truck PSE L-C series
walk-behind12 Vfor industrial applications

Electric stacker truck - PSE L-C series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for industrial applications
Electric stacker truck - PSE L-C series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for industrial applications
Electric stacker truck - PSE L-C series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for industrial applications - image - 2
Electric stacker truck - PSE L-C series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for industrial applications - image - 3
Electric stacker truck - PSE L-C series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for industrial applications - image - 4
Electric stacker truck - PSE L-C series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for industrial applications - image - 5
Electric stacker truck - PSE L-C series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for industrial applications - image - 6
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
12 V
Applications
for industrial applications
Other characteristics
compact, high-lift
Carrying capacity

Min.: 1,000 kg
(2,204.6 lb)

Max.: 1,500 kg
(3,306.9 lb)

Lifting height

Min.: 1,600 mm
(62.99 in)

Max.: 3,600 mm
(141.73 in)

Free lift

1,508 mm, 1,513 mm
(59.4 in, 59.6 in)

Height of mast when lowered

1,980 mm, 2,057 mm, 2,282 mm
(78 in, 81 in, 89.8 in)

Height of mast when raised

1,985 mm, 2,057 mm, 3,989 mm, 4,039 mm
(78.15 in, 80.98 in, 157.05 in, 159.02 in)

Overall width

820 mm
(32.3 in)

Overall length

1,750 mm, 1,779 mm
(68.9 in, 70 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,450 mm, 1,481 mm
(57.1 in, 58.3 in)

Battery capacity

80 Ah, 100 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4 km/h, 4.3 km/h, 4.4 km/h
(2.49 mph, 2.67 mph, 2.73 mph)

Lifting speed

0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)

Weight

450 kg, 570 kg, 590 kg, 750 kg
(992.08 lb, 1,256.63 lb, 1,300.73 lb, 1,653.47 lb)

Description

PSE10L-C/PSE15L-C is an economie walkie electric Stacker with rated capacity from 1000kg to 1500kg and lifting height from 1600 to 3600mm: which can meet most customers ’ requirements for goods stacking. The long-tiller design makes the operator comfortable and safer during operation. Long tiller design meets the requirements of ergonomics and safety Long -tiller design ensures the operators' high efficiency and a safe distance from Stacker. Compared with the short-tiller Stacker, a long-tiller Stacker uses less operating force. Besides, the safety distance and good view makes stacking operation more efficient and faster. Maintenance-free lead-acid battery Use maintenance-free lead-acid battery with deep discharge protection. (PSEIOL-C 80Ah, PSEI5L-C 100Ah) Stability casters Convenient stability casters adjustment, no need for lifting the Stacker. Strong channel Steel provides the Stacker with better stability and longer life.
