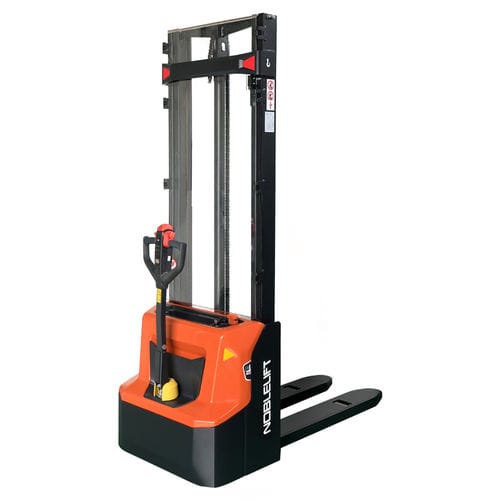

Semi-electric stacker truck PSE12 series
manualwalk-behind24 V

Semi-electric stacker truck - PSE12 series - Noblelift Intelligent Equipment Co., Ltd. - manual / walk-behind / 24 V
Semi-electric stacker truck - PSE12 series - Noblelift Intelligent Equipment Co., Ltd. - manual / walk-behind / 24 V
Semi-electric stacker truck - PSE12 series - Noblelift Intelligent Equipment Co., Ltd. - manual / walk-behind / 24 V - image - 2
Semi-electric stacker truck - PSE12 series - Noblelift Intelligent Equipment Co., Ltd. - manual / walk-behind / 24 V - image - 3
Semi-electric stacker truck - PSE12 series - Noblelift Intelligent Equipment Co., Ltd. - manual / walk-behind / 24 V - image - 4
Semi-electric stacker truck - PSE12 series - Noblelift Intelligent Equipment Co., Ltd. - manual / walk-behind / 24 V - image - 5
Semi-electric stacker truck - PSE12 series - Noblelift Intelligent Equipment Co., Ltd. - manual / walk-behind / 24 V - image - 6
Add to favorites
Compare this product


Characteristics

Energy
semi-electric, manual
Operator
walk-behind
Voltage
24 V, 12 V
Applications
handling, for industrial applications
Other characteristics
compact, high-performance, light-duty
Carrying capacity

1,200 kg
(2,645.5 lb)

Lifting height

1,514 mm, 3,514 mm
(59.61 in, 138.35 in)

Height of mast when lowered

2,280 mm
(89.8 in)

Height of mast when raised

4,037 mm
(158.94 in)

Overall width

800 mm
(31.5 in)

Overall length

1,710 mm
(67.3 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,350 mm
(53.1 in)

Battery capacity

60 Ah, 85 Ah

Motor power traction

0.65 kW
(0.884 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.2 km/h, 4.5 km/h
(2.61 mph, 2.8 mph)

Lifting speed

0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)

Weight

585 kg, 620 kg
(1,289.7 lb, 1,366.87 lb)

Description

The EDGE series was created by Noblelift with the aim to supply product range which is capable to provide high-efficient substitution of manual and semi-electric equipment with affordable cost. The family was named “Edge” thanks to new cutting-edge technical solutions which allowed us to create full range of compact and smart products. Clear focus of every employer beside the working efficiency is the réduction of safety risks and injuries for employées. Majority of risks related to injuries of backs, caused by demand of high pulling and pushing force to move not powered equipment around, can be easily eliminated with the new EDGE products. With considération of performance increase and safety risk réduction, the cost of ownership for the products included to the EDGE family is actually lower than the one for manual and semi-electric equipment. Smart features like speed control in turns, PIN-code or RFID access, function of driving with tiller in its vertical position, fast and opportunity charging for li-ion batteries, which before were not offered for économie material handling powered solutions, are now available for the Edge sériés products and making the work easier. The EDGE sériés products are strictly conform to requirements of international safety standards. The operator can always clearly see the forks which significantly increases safety of operation Wide mast provides perfect observation of forks, the field of view is clear and not interrupted by mast sections, cylinder or chains. Capacity of 1200kg with high residual value at maximum height (load center distance 600 mm)
