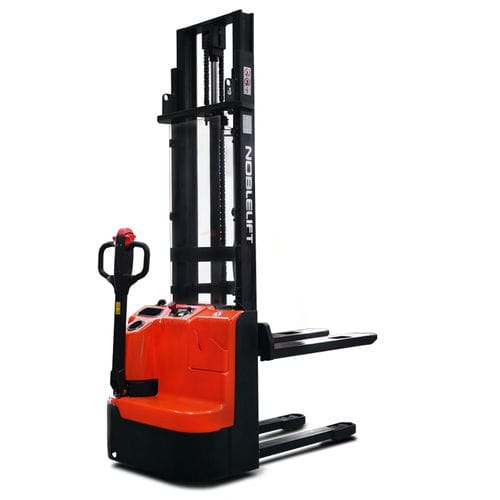

Pallet stacker truck ECL15B
electricwalk-behind12 V

Pallet stacker truck - ECL15B - Noblelift Intelligent Equipment Co., Ltd. - electric / walk-behind / 12 V
Pallet stacker truck - ECL15B - Noblelift Intelligent Equipment Co., Ltd. - electric / walk-behind / 12 V
Pallet stacker truck - ECL15B - Noblelift Intelligent Equipment Co., Ltd. - electric / walk-behind / 12 V - image - 2
Pallet stacker truck - ECL15B - Noblelift Intelligent Equipment Co., Ltd. - electric / walk-behind / 12 V - image - 3
Pallet stacker truck - ECL15B - Noblelift Intelligent Equipment Co., Ltd. - electric / walk-behind / 12 V - image - 4
Pallet stacker truck - ECL15B - Noblelift Intelligent Equipment Co., Ltd. - electric / walk-behind / 12 V - image - 5
Pallet stacker truck - ECL15B - Noblelift Intelligent Equipment Co., Ltd. - electric / walk-behind / 12 V - image - 6
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
12 V
Applications
for pallet, handling, for industrial applications
Carrying capacity

1,500 kg
(3,306.9 lb)

Lifting height

Min.: 1,600 mm
(62.99 in)

Max.: 3,600 mm
(141.73 in)

Free lift

1,510 mm
(59.4 in)

Height of mast when lowered

1,978 mm, 2,280 mm
(77.9 in, 89.8 in)

Height of mast when raised

1,985 mm, 4,005 mm
(78.15 in, 157.68 in)

Overall width

820 mm
(32.3 in)

Overall length

1,806 mm, 1,830 mm
(71.1 in, 72 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,450 mm, 1,474 mm
(57.1 in, 58 in)

Battery capacity

60 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.4 km/h, 4.7 km/h
(2.73 mph, 2.92 mph)

Lifting speed

0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)

Weight

641 kg, 782 kg
(1,413.16 lb, 1,724.01 lb)

Description

ECL 15B series is an economical long-tiller pallet Stacker, with the rated load capacity of 1500KG and lift height from 1600 to 3600mm, it meets customers' demands for increasing économie performance, handling efficiency and safety. Economie but durable tiller with internai structure design and plastic coating, ensures reliable and comfortable operation. CAN-BUS technology reduces the connection number and improves System reliability. CAN-BUS technology is convenient to check and shoot trouble, it also reduces maintenance time. Battery deep discharge protection device, voltage discharge indicator with low voltage automatic cutting and lifting function, for higher battery lifetime. Proofed emergency switch and voltage discharge indicator, make it more durable and reiiable. Indicator shows faults through CAN-BUS, there is no need to remove the indicator housings. 48V DC brushless motor, low energy cost, no carbon brush, no spark, smooth operation, high efficiency, low fault rate, low maintenance cost, low noise, long lifetime. All parts of the Stacker is maintenance-convenient, no need for spécial tools. Built-in 8A charger. Maintenance-free lead-acid battery, 48Vx60Ah. 48v2.2kw powerful pump System & powerful drive.

Catalogs

ECL 15B
ECL 15B
2 Pages
