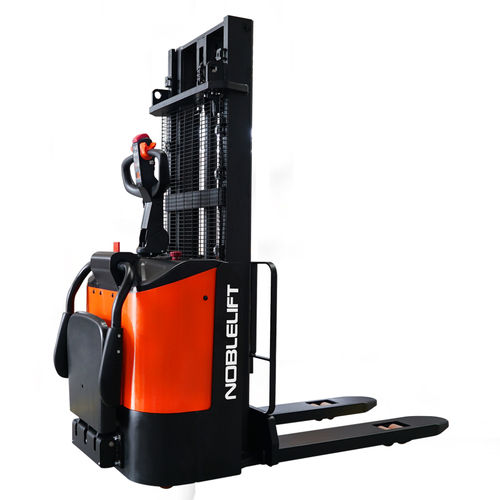

Electric stacker truck PSE15-C
with rider platform12 Vtransport

Electric stacker truck - PSE15-C - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / 12 V / transport
Electric stacker truck - PSE15-C - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / 12 V / transport
Electric stacker truck - PSE15-C - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / 12 V / transport - image - 2
Electric stacker truck - PSE15-C - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / 12 V / transport - image - 3
Electric stacker truck - PSE15-C - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / 12 V / transport - image - 4
Electric stacker truck - PSE15-C - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / 12 V / transport - image - 5
Electric stacker truck - PSE15-C - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / 12 V / transport - image - 6
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
with rider platform
Voltage
12 V
Applications
transport, for warehouse, loading, unloading
Carrying capacity

1,500 kg
(3,306.9 lb)

Lifting height

3,515 mm
(138.39 in)

Free lift

78 mm
(3.1 in)

Height of mast when lowered

2,280 mm
(89.8 in)

Height of mast when raised

4,005 mm
(157.68 in)

Overall width

820 mm
(32.3 in)

Overall length

1,867 mm
(73.5 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,487 mm
(58.5 in)

Battery capacity

106 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4 km/h, 4.2 km/h
(2.49 mph, 2.61 mph)

Lifting speed

0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)

Weight

865 kg
(1,907 lb)

Description

PSE15-C is a ride-on économie electric Stacker that is suitable for horizontal and short distance cargo transpotation.PSE15-C is a combination of walking and standing Stacker,load capacity up to 1500kg.The Stacker is powerful,reliable,easy installation and easy maintenance.lt is suitable for loading and unloading goods in factories, warehouses, supermarkets and other places. Built-in charger The buiit-in charger gives higher autonomy during the application. Emergency power off switch The emergency power-off switch ensures the safety of driving. Stability caster The stability caster can be adjusted conveniently without lifting the truck. Easily disassembled The solid châssis with 8mm protective apron can effectively protect the body and internai parts from external mechanical impact. Function application The whole vehicle System adopts analog circuit control, which éliminâtes redundant and fancy functions and strengthens the necessary safety functions. Besides, it mainly focuses on the main action functions. The fault point is lowered, the circuit is simplified and the maintenance is simple. Foldable platform It has good shock absorption effect, comfortable operation and not easy to fatigue. The arm guard can be rotated for safer operation.
