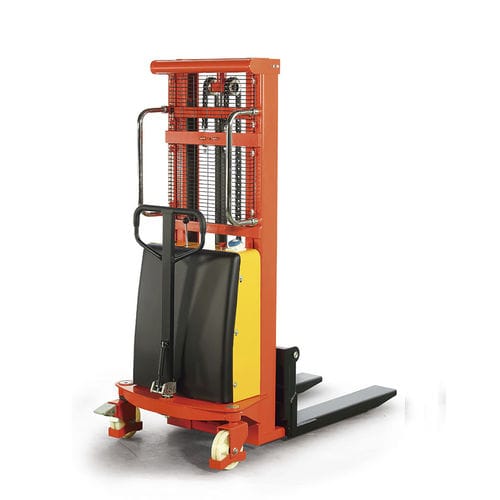

Semi-electric stacker truck SPN series
walk-behind12 Vnarrow-aisle

Semi-electric stacker truck - SPN series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / narrow-aisle
Semi-electric stacker truck - SPN series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / narrow-aisle
Add to favorites
Compare this product


Characteristics

Energy
semi-electric
Operator
walk-behind
Voltage
12 V
Applications
narrow-aisle
Other characteristics
compact, rugged
Carrying capacity

1,000 kg, 1,500 kg
(2,204.6 lb, 3,306.9 lb)

Lifting height

Max.: 3,500 mm
(137.8 in)

Min.: 1,600 mm
(62.99 in)

Height of mast when lowered

Max.: 2,328 mm
(91.7 in)

Min.: 1,978 mm
(77.9 in)

Height of mast when raised

Max.: 3,991 mm
(157.13 in)

Min.: 1,978 mm
(77.87 in)

Overall width

777 mm, 844 mm
(30.6 in, 33.2 in)

Overall length

1,778 mm, 1,780 mm, 1,786 mm, 1,788 mm
(70 in, 70.1 in, 70.3 in, 70.4 in)

Fork width

160 mm, 180 mm
(6.3 in, 7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,350 mm, 1,400 mm
(53.1 in, 55.1 in)

Battery capacity

150 Ah

Motor power lifting

1.6 kW
(2.175 hp)

Lifting speed

70 mm/s, 140 mm/s, 150 mm/s, 800 mm/s

Weight

Max.: 567 kg
(1,250.02 lb)

Min.: 305 kg
(672.41 lb)

Description

The SPN10/15 series semi-electric Stacker is the cost-effective choice for short-distance transportation and stacking applications.With its compact and smart design, it is easy to maneuver and idéal to be used in confined spaces esp. narrow aisles.
