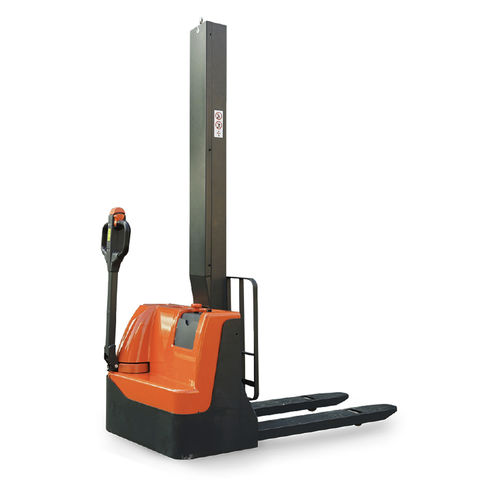

Electric stacker truck PSE10M
walk-behind12 Vfor warehouse

Electric stacker truck - PSE10M - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for warehouse
Electric stacker truck - PSE10M - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for warehouse
Electric stacker truck - PSE10M - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for warehouse - image - 2
Electric stacker truck - PSE10M - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for warehouse - image - 3
Electric stacker truck - PSE10M - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for warehouse - image - 4
Electric stacker truck - PSE10M - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 12 V / for warehouse - image - 5
Add to favorites
Compare this product

Go to the Noblelift Intelligent Equipment Co., Ltd. website for more information

Characteristics

Energy
electric
Operator
walk-behind
Voltage
12 V
Applications
for warehouse
Other characteristics
rugged, light-duty
Carrying capacity

1,000 kg
(2,204.6 lb)

Lifting height

Max.: 2,000 mm
(78.74 in)

Min.: 800 mm
(31.5 in)

Height of mast when lowered

1,570 mm, 1,949 mm, 2,349 mm
(61.8 in, 76.7 in, 92.5 in)

Overall width

800 mm
(31.5 in)

Overall length

1,778 mm
(70 in)

Fork width

150 mm
(5.9 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,485 mm
(58.5 in)

Battery capacity

85 Ah

Motor power traction

0.45 kW
(0.612 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.3 km/h, 4.5 km/h
(2.67 mph, 2.8 mph)

Lifting speed

0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)

Weight

432 kg, 442 kg, 454 kg
(952.4 lb, 974.44 lb, 1,000.9 lb)

Description

The PSE 10M based on the same reliable components anddesign-character as the electric Stacker ECL sériés with monomast for perfect view to theloads. It is the cost-effective solution for ail light-dutystacking applications. Economic robust handle Robust but économie handle withsteel housing and plastic coatingensures reliable and comfortableoperation. Built-in charger The built-in charger giveshigher autonomy during theapplication Reliable instruments Battery discharge indicatorwith automatic lift cut-offfunction for higher battery lifetime Battery deep discharge protection Smart Mono mast Numerous trays for storage such as drinks, cell phone, penand others. Powerful battery 2x12V 85Ah owerful VRAL-AGM main-tenance freebatteries(option 2x12V 106Ah) Fulfilling standards Fulfilling the actual valid European standards, also in ISO 13849 performance leveL. Italian drive technology Italian drive System for morepower, better energy consumption as well as lownoise and maintenance costs Robust profile Robust mast with real mast profilsfor perfect stability, accuracy andhigh lifetime.
