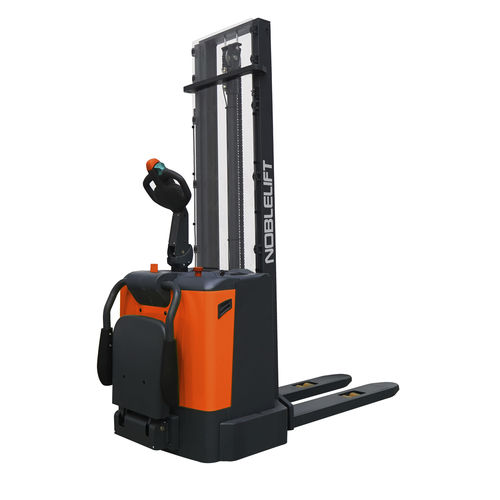

Electric stacker truck PSB series
with rider platformwalk-behind24 V

Electric stacker truck - PSB series - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / walk-behind / 24 V
Electric stacker truck - PSB series - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / walk-behind / 24 V
Electric stacker truck - PSB series - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / walk-behind / 24 V - image - 2
Electric stacker truck - PSB series - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / walk-behind / 24 V - image - 3
Electric stacker truck - PSB series - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / walk-behind / 24 V - image - 4
Electric stacker truck - PSB series - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / walk-behind / 24 V - image - 5
Electric stacker truck - PSB series - Noblelift Intelligent Equipment Co., Ltd. - with rider platform / walk-behind / 24 V - image - 6
Add to favorites
Compare this product

Go to the Noblelift Intelligent Equipment Co., Ltd. website for more information

Characteristics

Energy
electric
Operator
with rider platform, walk-behind
Voltage
24 V
Applications
for warehouse
Other characteristics
rugged, high-performance
Carrying capacity

1,200 kg, 1,500 kg
(2,645.5 lb, 3,306.9 lb)

Lifting height

Min.: 1,600 mm
(62.99 in)

Max.: 3,600 mm
(141.73 in)

Free lift

120 mm, 150 mm
(4.7 in, 5.9 in)

Height of mast when lowered

1,946 mm, 2,096 mm
(76.6 in, 82.5 in)

Height of mast when raised

3,281 mm, 3,596 mm
(129.17 in, 141.57 in)

Overall width

910 mm
(35.8 in)

Overall length

1,846 mm, 1,883 mm, 1,946 mm, 1,983 mm
(72.7 in, 74.1 in, 76.6 in, 78.1 in)

Fork width

180 mm
(7.1 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,400 mm, 1,440 mm, 1,500 mm, 1,540 mm
(55.1 in, 56.7 in, 59.1 in, 60.6 in)

Battery capacity

210 Ah

Motor power traction

1.3 kW
(1.768 hp)

Motor power lifting

2.2 kW, 3 kW
(2.991 hp, 4.079 hp)

Travel speed

6 km/h
(3.73 mph)

Lifting speed

0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)

Weight

960 kg, 1,035 kg
(2,116.44 lb, 2,281.78 lb)

Description

The PS B-Series are meant for medium duty stacking operations with capacities up to 1200kg/1500kg. The optional foldable platform with protective arms and the maintenance free batteries for light duty applications makes this truck the idéal assistant. The powerful AC-drive technology and the CANbus tiller reduces maintenance cost and increases the overall performance. • Powerful high quality AC drive unit ensures high performance with low maintenance cost. • Optional EPS- Electric power steering System. • Ergonomie CAN-BUS tiller, for both left-handed and right handed operators. High performance 3PzS (4PzS) DIN-standard battery cells for long operations. Optional foldable platform with protective arms. The cushioned platform ensures safety in ail traveling conditions. Key-switch, emergency switch and battery discharge Indicator. Diverse storage areas for stretch foils, documents or clipboards, etc. • Foldable platform allows higher flexibility in narrow spaces. • several mast versions are available for ps B-Series with different lifting heights.
