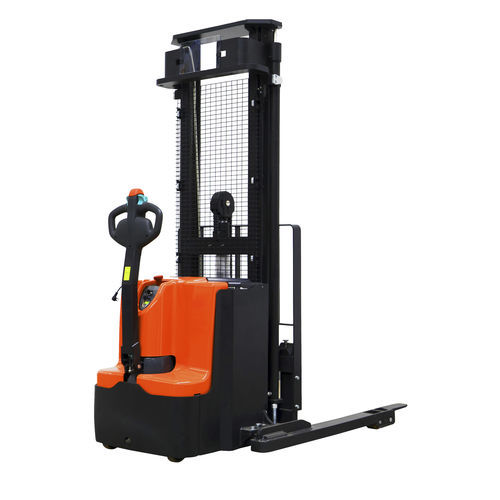

Electric stacker truck PS TSL series
walk-behind24 Vstraddle

Electric stacker truck - PS TSL series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / straddle
Electric stacker truck - PS TSL series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / straddle
Electric stacker truck - PS TSL series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / straddle - image - 2
Electric stacker truck - PS TSL series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / straddle - image - 3
Electric stacker truck - PS TSL series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / straddle - image - 4
Electric stacker truck - PS TSL series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / straddle - image - 5
Electric stacker truck - PS TSL series - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / straddle - image - 6
Add to favorites
Compare this product

Go to the Noblelift Intelligent Equipment Co., Ltd. website for more information

Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Other characteristics
straddle, rugged
Carrying capacity

1,200 kg, 1,600 kg, 1,800 kg
(2,645.5 lb, 3,527.4 lb, 3,968.3 lb)

Lifting height

3,560 mm, 4,530 mm
(140.16 in, 178.35 in)

Free lift

1,520 mm, 1,760 mm
(59.8 in, 69.3 in)

Height of mast when lowered

2,108 mm, 2,228 mm, 2,308 mm
(83 in, 87.7 in, 90.9 in)

Height of mast when raised

4,088 mm, 5,088 mm, 5,208 mm
(160.94 in, 200.31 in, 205.04 in)

Overall width

Max.: 1,470 mm
(57.9 in)

Min.: 816 mm
(32.1 in)

Overall length

1,990 mm, 2,075 mm, 2,092 mm
(78.3 in, 81.7 in, 82.4 in)

Fork width

100 mm, 120 mm
(3.9 in, 4.7 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

35 mm, 40 mm
(1.38 in, 1.57 in)

Turning circle radius

1,500 mm, 1,550 mm
(59.1 in, 61 in)

Battery capacity

180 Ah, 270 Ah

Motor power traction

1.3 kW, 1.4 kW
(1.768 hp, 1.903 hp)

Motor power lifting

1.5 kW, 3.2 kW
(2.039 hp, 4.351 hp)

Travel speed

5.4 km/h, 6 km/h
(3.36 mph, 3.73 mph)

Lifting speed

Max.: 0.2 m/s
(0.656 ft/s)

Min.: 0.1 m/s
(0.328 ft/s)

Weight

1,190 kg, 1,480 kg, 1,560 kg
(2,623.5 lb, 3,262.84 lb, 3,439.21 lb)

Description

The PSxxL series is tailored to most pedestrian controlled stacking operations with capacities from 2600 lbs to 4000lbs. Mesh protection for safety as well as great visibility during operation, no reflection form Plexiglas and high robustness. The powerful Schabmuller maintenance free AC Drive motor in combination with the ZF gearbox, Intorq brake and Rader Vogel drive wheel gives best performance, efficiency and reliability to reduce operating costs! Whether smooth or fast acceleration is applied, the AC Drive always gives the right and direct response. Built in USB-connector USB-connector for charging of additional devices during warehouse operations. Straddle Leg Adjustable straddle leg design, suitable for diverse pallet sizes and more stablity. Maintenance friendly The trucks design and component placement allow for easy service and maintenance. Two screws are used to hold cover in place allowing fast and easy access to all components. Drive wheel and caster can be removed and replaced without use of additional lifting devices.
