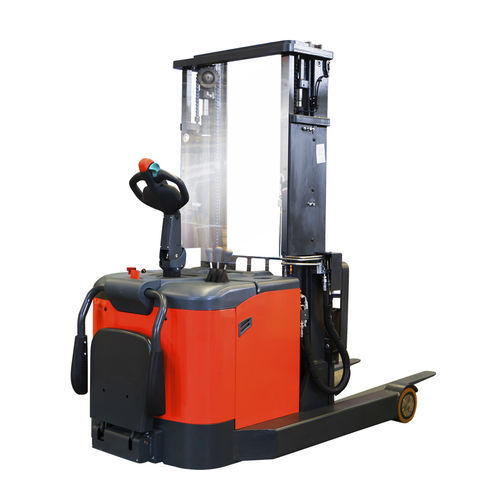

Electric stacker truck PS RM Plus serieswith rider platformwalk-behind24 V
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- with rider platform, walk-behind
- Voltage
- 24 V
- Applications
- loading
- Other characteristics
- high-performance
- Carrying capacity
1,300 kg, 1,500 kg
(2,866 lb, 3,306.9 lb)- Lifting height
Min.: 1,200 mm
(47.24 in)Max.: 4,800 mm
(188.98 in)- Free lift
1,600 mm
(63 in)- Height of mast when lowered
2,096 mm, 2,196 mm
(82.5 in, 86.5 in)- Height of mast when raised
2,485 mm, 3,885 mm, 5,685 mm
(97.83 in, 152.95 in, 223.82 in)- Overall width
1,184 mm
(46.6 in)- Overall length
2,080 mm, 2,160 mm
(81.9 in, 85 in)- Fork width
100 mm
(3.9 in)- Fork length
920 mm
(36.22 in)- Fork thickness
35 mm
(1.38 in)- Turning circle radius
1,570 mm, 1,720 mm
(61.8 in, 67.7 in)- Battery capacity
270 Ah, 400 Ah
- Motor power lifting
2.2 kW, 3 kW
(2.991 hp, 4.079 hp)- Travel speed
5.5 km/h, 6 km/h, 8 km/h
(3.42 mph, 3.73 mph, 4.97 mph)- Lifting speed
Min.: 85 mm/s
Max.: 165 mm/s
- Weight
Min.: 1,750 kg
(3,858.09 lb)Max.: 2,250 kg
(4,960.4 lb)
Description
The PS 13/15RM Plus is the perfect sélection where short length is needed with a high lift capacity.ln combination with the powerful components this truck cornes with excellent performance.
Optional foot pedal,protective arm, ergonomically foldable pedal and protective arm makes the operation faster and safer.
AC drive System increases performance, reducing maintenance costs, improving work efficiency.
High capacity battery
The large battery capacity extends long time operation needs.
Fork tilting
Tilting Forks ensures safety cargo loading.
Reach mast
Flexible operation is available in a small space.
