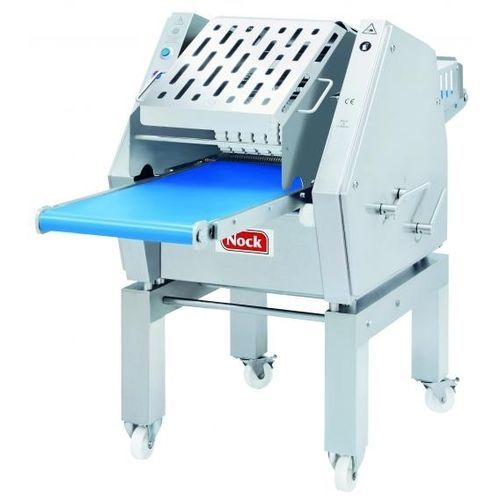

Meat derinder CORTEX CB series

shouldercompactautomatic

Meat derinding machine with further developed geometry of the pressure system with dynamic adaption for varibly high products features: - technical further development of our proven models CB 504 / CB 604 / CB 704 further developed geometry of the pressure unit with dynamic adaption to products with variable heights available as mobile model with accessibility for skin removal from the sides or as "suspended" version with plant specific adaptation improved cleaning process application: - automatic conveyorised derinding machine for industrial application perfect derinding of all flat and high pieces such as belly, back fat, rind cut to size, partial cuts, shoulder etc. STANDARD EQUIPMENT • infeed conveyor • discharge conveyor • compact casing (new design) with sloping tops and underframe open on all four sides • blade gap infinitely adjustable • NEW: The blade holders are designed for blades with dimensions: 518/618/718 x 22 x 0.7 mm • NEW: Fastening of the blade from above with screws, for fast and safe blade change • NEW: The blade holder can remain in the machine for cleaning and is adjustable upwards for this puprose, so that thorough cleaning is possible • spring suspended blade holder for perfect derinding results • Newly developed geometry of the pressure system and spring identification for dynamic adaption to variously high pieces; preadjustment of height
