Signal generator CNG-EbNo SNR

noise

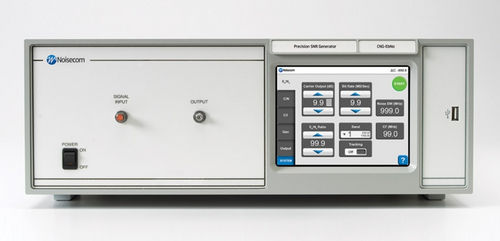

The CNG-EbNo is a fully automated instrument that sets and maintains a highly accurate ratio between a user-supplied carrier and internally generated AWGN noise, over a wide range of signal power levels and frequencies. The CNG-EbNo gives system, design, and test engineers in the cellular/PCS, satellite and military communication industries a cost-effective means of obtaining higher yield through automated testing, plus increased confidence from repeatable, accurate test results. C/N carrier to noise ratio C/I carrier to interferer ration C/No carrier to noise density ratio Eb/No bit energy to noise density ratio Custom configurations 6.25" color TFT touch screen Accuracy of 0.2 dB RSS Bit Rates from 1 bps to 1 Gbs Variable Output Power from -55 dBm to +5 dBm
