LED display 575F5-20215-digit7-segmenttemperature measurement
Add to favorites
Compare this product
Characteristics
- Screen type
- LED
- Format
- 5-digit, 7-segment
- Applications
- temperature measurement
- Interface
- RS-232, RS-485
- Structure
- large-format
- Configuration/mounting
- wall-mounted
- Other characteristics
- electronic
Description

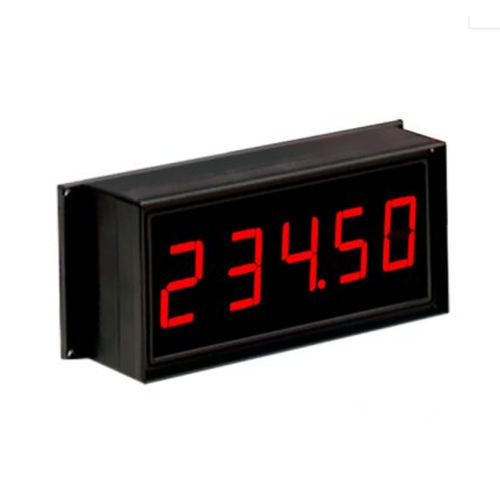

575F5 is wall mounted large field display, with five 57 mm high digits. The device can be configured depending on the model.
The device is available as 24VDC model, which operates at 20…32 VDC / 24 VAC voltage or 230VAC model, which operates 41…265 VAC/VDC voltage.
The device can be ordered or equipped later with 2000 series output card, 2 or 3 alarm relay card, serial data card or I/O card depending on the model.
The device is one channel, except in two channel models 575F5-2212 ja 575F5-2251 there are two input cards which if desired can calculate mathematical function between two channels such as average.
Input: temperature, process Pt100, thermocouples, 0/4-20 mA, 0-5, 0-10V, potentiometer
Output: 2 alarm relays, serial data RS485/232, 0/4-20 mA, 0-5, 0-10V
