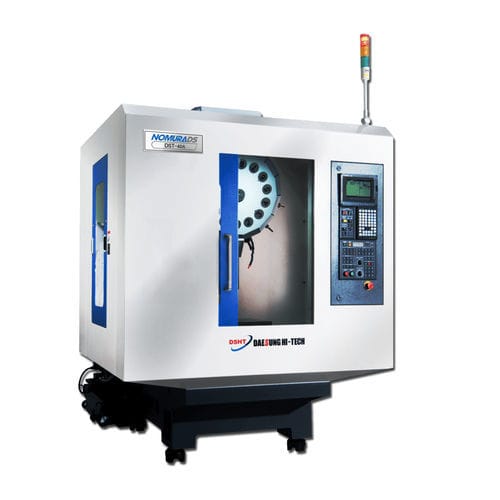

3-axis CNC milling machine DST-40Averticalwith moving tabletraveling-column
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with moving table, traveling-column
- Spindle mount
- BBT30
- Number of tool stations
- 21 tools
- Associated functions
- tapping
- Other characteristics
- compact, high-rigidity, high-speed
- X travel
20.47 in
- Y travel
15.75 in
- Z travel
13.78 in
- Rotational speed
15,000 rpm, 24,000 rpm
(94,248 rad.min-1, 150,796 rad.min-1)- Power
10 ch
(10 hp)
Description
The DST-40A is a high-speed, high-efficiency tapping center, capable of performing a wide range of work from light cutting for the IT industry to heavy cutting for the automotive industry. Its direct coupled spindle motor and highly rigid spindle allow for reduced spindle acceleration/ deceleration time.
Specifications
General Info
Floor Space
66.5 x 81.9 in
Table Size
25.59 x 15.75 in
Controller
Mitsubishi M80
Tool Stations
21
Spindle
Speed
15,000 RPM plus optional RPM (24,000)
Power
10 HP
Taper
30 - BBT30 with face contact
Travel
Travel (X, Y, Z)
20.47 x 15.75 x 13.78 in
Rapid Traverse
2,362.2 ipm
