Isolation transformer SU series
dryindustrialsingle-phase

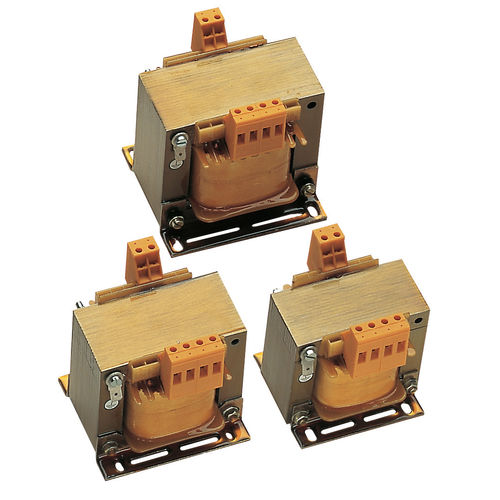

Isolation transformer - SU series - Noratel China Ltd - dry / industrial / single-phase

Isolation transformer - SU series - Noratel China Ltd - dry / industrial / single-phase - image - 2

Add to favorites

Compare this product

Characteristics

Type

isolation

Configuration

dry

Applications

industrial

Electrical characteristics

single-phase

Norms

EN61558

Other characteristics

safety, control

Output power kVA

Max.: 1 kVA
(1.359621 hp)

Min.: 0.06 kVA
(0.081577 hp)

Primary voltage

Max.: 690 V

Min.: 230 V

Secondary voltage

Max.: 48 V

Min.: 6 V

Secondary current

Max.: 41.7 A

Min.: 1.5 A

Frequency

Max.: 63 Hz

Min.: 47 Hz

Description

safety isolating / Control Transformer, IP00 Open single-phase safety isolating transformer designed and tested according to norm EN61558-2-6. Separate insulated windings and protected against dust, humidity and corrosion through complete impregnation in heat tempered varnish. For fixed installation in cabinets or switchboards. The transformer is designed according to DnV, Lloyds register of shipping and Bureau Veritas standards witch require 45°C ambient temperature. Industrial transformer designed for low voltage installation in processing industry and switchboards, class I. The transformer has to be mounted in cover. Uncovered installation prohibited. Special designed metal plate covers available (Type SUK). The transformer must be protected against short circuit and overload with separate fuse arrangement. Applications: Industrial transformer designed for low voltage installation in processing industry and switchboards, class I. The transformer has to be mounted in cover. Uncovered installation prohibited. Special designed metal plate covers available (Type SUK). The transformer must be protected against short circuit and overload with separate fuse arrangement.
