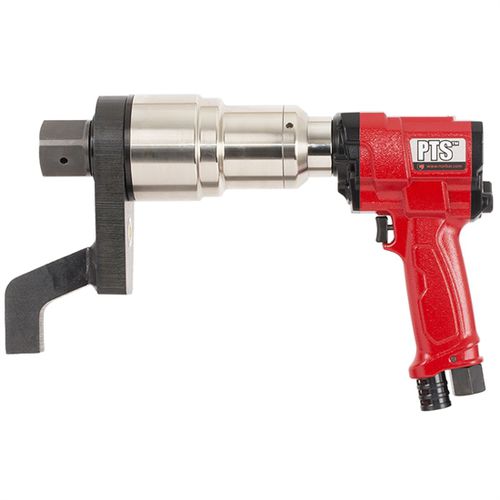

Pneumatic torque wrench PTS-92 series

pistol

The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool. The new air motor is then married to Norbar's respected gearbox range, sharing common torque reaction accessories with PTM and EvoTorque® tools. Part number: 180250.B08 EAN Bar Code: 5060207568210 NATO number: - Accuracy: ±3% Operates between: 800.00 - 4000.00 N·m 590.00 - 2950.00 lbf·ft Designed to offer excellent power-to-weight ratio Up to 2.5kg weight saving compared with PT equivalents Easily accessible switch for forward and reverse operation ±5% repeatability of reading from 20% to 100% of range Air coupling designed for safety and rapid operation Directional exhaust barrel directs exhaust away from operator Replaceable square drive Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model Non impacting - low vibration levels for comfortable and safe use Steel reactions supplied as standard. Bespoke reactions available Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A) Supplied as standard with a traceable calibration certificate in a clockwise direction only
