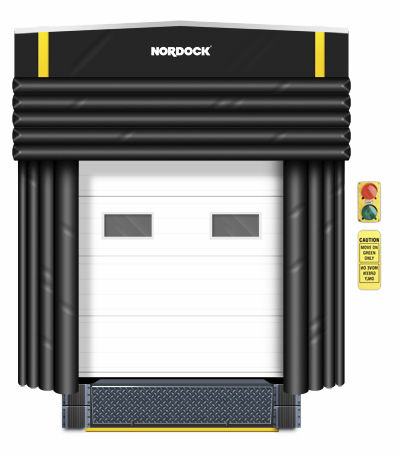

The IS-550 Series Dock Shelter provides an energy tight seal for the climate controlled dock environment. The dock operator inflates the top and side seals once the trailer is secured. The blower runs continuously during loading operations and automatically retracts when completed returning to a stored position away from the trailer. The IS-550 features a rigid head frame, high wear resistant fabric, translucent top cover and header mounted motor and blower.
IS-550 Features
Improves safety & productivity while reducing costs by providing protection from inclement weather, dirt & insects while saving energy
High-tear abrasion resistant 16 oz. Vinyl bag fabric with double lock stitching
Unique retraction system quickly deflates & returns unit to stored position
On/off switch with pilot light
Motor/blower mounted in header
Pressure treated superior grade head frame
Condensation drainage system
Rigid frame with translucent top cover
Galvanized steel mounting hardware
Top storage curtain with yellow guide stripe for accurate truck placement
Bottom corner draft pads
16 oz. Weartough™ fabric
