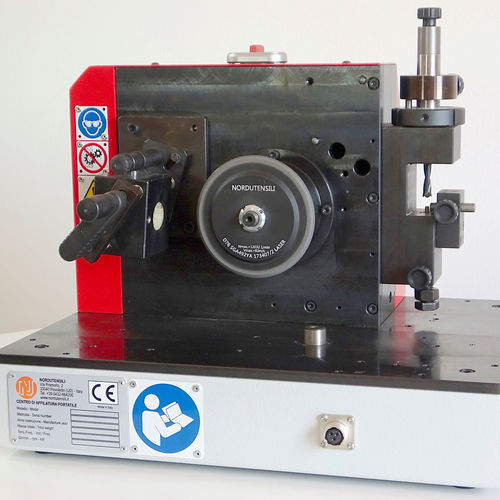

Manual sharpening machine NU2Adrill bitfor woodworking drillsfor woodworking tools
Add to favorites
Compare this product
Characteristics
- Applications
- drill bit, for woodworking drills, for woodworking tools
- Control type
- manual
- Other characteristics
- electric motor driven
- Spindle speed
3,200 rpm
(20,106 rad.min-1)- Power
90 W
(0.12 hp)
Description
It is a very compact, easy to use, machine.
The machine is supplied with supports to sharpen:
• - dowel drills (solid carbide and brazed) diameter from 5 mm to 16 mm;
• - through bore drills (solid carbide and brazed) diameter from 4 mm to 16 mm;
• - drills with radius spurs (Laser, Kanefusa, Marathon, Mosquito and similar) diameter from 4 mm to 10 mm.
Through a simple manual adjustment, the operator can easily switch from one configuration to another one in a very short time.
Sharpened tools are ready to use, with a significant time and money saving.
This machine is also equipped with a convenient grinding wheel dresser designed to re-profile the wheel with the original geometry.
Dimensions: width 415 mm – height 335 mm – depth 310 mm.
Total weight: 34 kg.
Mains Voltage: 85 – 264 AC
