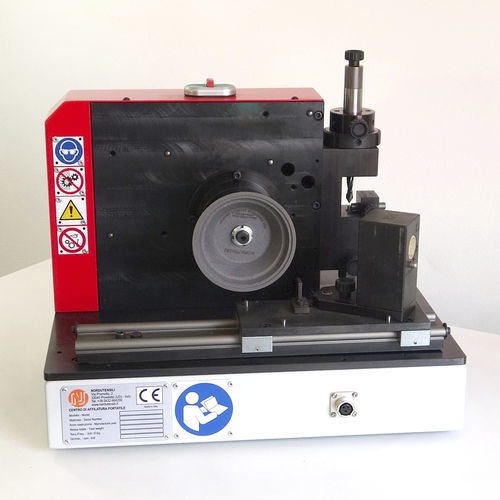

Manual sharpening machine NU2ATHROUGHDRILLSdrill bitfor woodworking drillsfor woodworking tools
Add to favorites
Compare this product
Characteristics
- Applications
- drill bit, for woodworking drills, for woodworking tools
- Control type
- manual
- Other characteristics
- electric motor driven
- Spindle speed
Max.: 3,200 rpm
(20,106 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
90 W
(0.12 hp)
Description
It is a very compact, easy to use, machine.
The sharpening system is specifically designed for THROUGH BORE DRILLS (solid carbide and brazed).
Supports and linear guides supplied with the machine allow, through a simple manual adjustment, to create your preferred cutting angles.
Sharpened tools are ready to use, with a significant time and money saving.
This machine is also equipped with a convenient grinding wheel dresser designed to re-profile the wheel with the original geometry.
Dimensions: width 415 mm – height 335 mm – depth 310 mm.
Supported tools: diameter from 4 mm to 16 mm.
Total weight: 34 kg.
