Compression latch 05575

quarter-turnadjustable

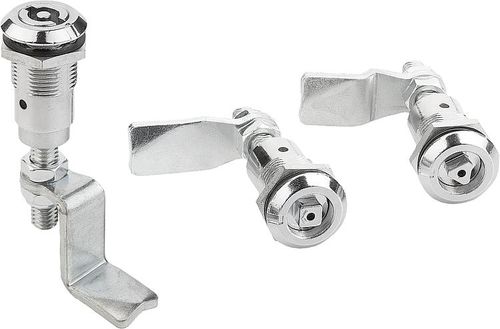

Compression latches with adjustable tongue height Material: Housing, actuator and nut die-cast zinc. Flat seal CR. Tongue steel. Version: Housing and actuator chromed. Nut and tongue galvanised. Note: Compression quarter-turn locks are primarily used for doors and housings that require a higher pressure force on the seal. For right or left use. The locking process is always clockwise. The quarter-turn lock can be installed pre-assembled. Vibration-resistant thanks to spring-loaded detent mechanism in the "locked" end position. Tested according to DIN EN 60068-2-64 (vibration) and DIN EN 60068-2-27 (shock), test standard 61373. Vibration-proof as per the requirements for rail applications category 1, class B (=highest requirement). Water and dustproof as per IP65. Please order required tongue version separately. Every tongue can be combined with every housing. Function: Turning the actuator clockwise rotates the tongue 90° and brings it into the closed position. A further 90° rotation pulls the tongue in, increasing the pressure on the frame. The axial travel is 6 mm. With marking on housing for "locked" position. Accessory: Lock key 05586 Drawing reference: Actuation: a) square 8 mm b) double lug 3 mm c) double lug 5 mm d) triangle 8 mm
