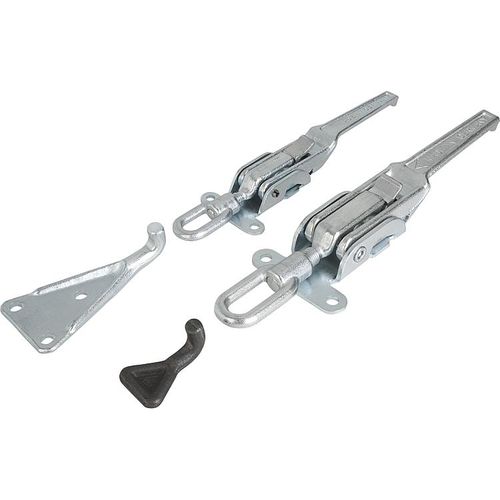

Steel draw latch 05560
adjustablehook

Steel draw latch - 05560 - norelem - Éléments standard mécaniques - adjustable / hook
Steel draw latch - 05560 - norelem - Éléments standard mécaniques - adjustable / hook
Steel draw latch - 05560 - norelem - Éléments standard mécaniques - adjustable / hook - image - 2
Steel draw latch - 05560 - norelem - Éléments standard mécaniques - adjustable / hook - image - 3
Steel draw latch - 05560 - norelem - Éléments standard mécaniques - adjustable / hook - image - 4
Steel draw latch - 05560 - norelem - Éléments standard mécaniques - adjustable / hook - image - 5
Add to favorites
Compare this product


Characteristics

Material
steel
Type
adjustable, hook
Gripping force

Max.: 30,500 N

Min.: 20,000 N

Description

Adjustable latches heavy-duty version Material: Steel. Version: Galvanized and blue chromed. Catch plate Form B (weldable) bright. Note: Heavy, forged latches for high tensile loads. Primarily used on utility vehicles, agricultural and construction machinery. A ratchet prevents unintentional opening when closed. To compensate for tolerances or to create enough tension the bail can be adjusted using the spindle D1. Order required catch plate version separately. The retaining force F1 applies to the latch, not the catch plate.
