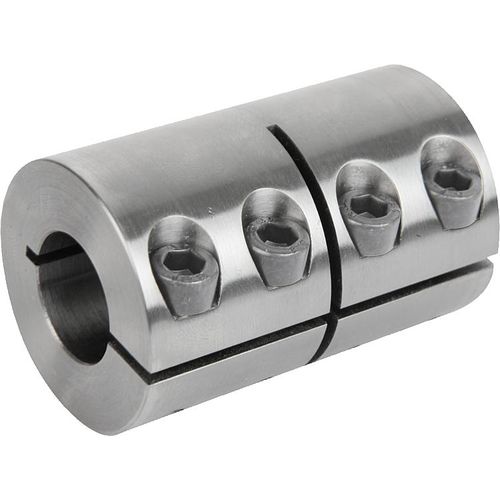

Rigid coupling 23050zero-backlashmaintenance-freemisalignment correction
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Performance
- zero-backlash, maintenance-free
- Other characteristics
- misalignment correction
- Torque
Min.: 1.1 Nm
(0.8113 ft.lb)Max.: 77 Nm
(56.7923 ft.lb)
Description
Rigid couplings one-piece
Material:
Steel 1.0718.
Stainless steel 1.4305.
Version:
Bright.
Note:
Rigid couplings transmit high torques without rotational play. They are used where there are no shaft displacements or alignment errors. Wear-free and maintenance-free. Screws secured to avoid vibration induced loosening.
The maximum torque transmission can only be achieved through optimal installation and correct shaft dimensions.
Maximum speed 4000 rpm.
Temperature range:
-40 °C to +175 °C.
On request:
Other dimensions.
