Adjustment device 29210

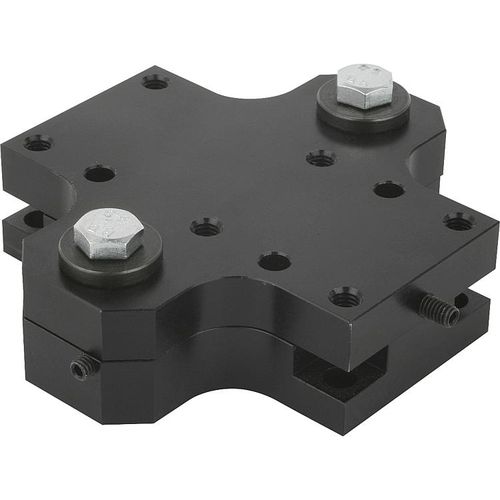

Adjustment units Material: Aluminium EN AW-6060 Version: Black anodized Note: Units for precise adjustment of components in the X-Y axis. Allows compensation for machining tolerances in mechanical assemblies. Matches our single and double bases. The uniform hole pattern of the respective sizes allows the adjustment units to be fitted under the base at a later date. Adjustment range: X: ±3 mm Adjustment range: Y: ±3 mm Drawing reference: position tolerance of reamed holes: ±0,01 position tolerance of holes: ±0,1 FS = lock screw (2x) JS = setscrew (4x)
