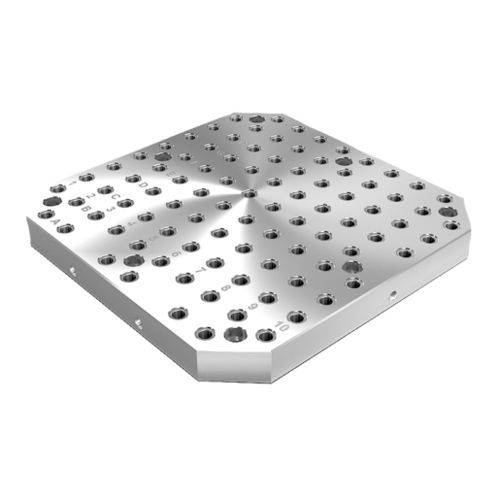

Clamping pallet 01148

Subplates, grey cast iron with grid holes MATERIAL GJL 300. VERSION Support and mounting surfaces ground NOTE Grid spacing 50 ±0.02 mm. Plates with grid holes are used for constructing modular fixtures. These plates are positioned and fastend directly on machine tables. The alphanumerically labelled grid holes guarantee a defined assignment of clamping elements by repeat setups. The subplates conform to machine tables for machine tools acc. to DIN 55201 and JIS 6337-1980. Please order locating pins for positioning subplates on machine tables acc. to DIN 55201 separately. Please order protection plugs to plug unused grid holes separately. Ring bolts for hoisting are supplied. Other dimensions available on request. DRAWING REFERENCE 1) grid hole 2) hole for DIN 912 cap screw (D3/D4)
