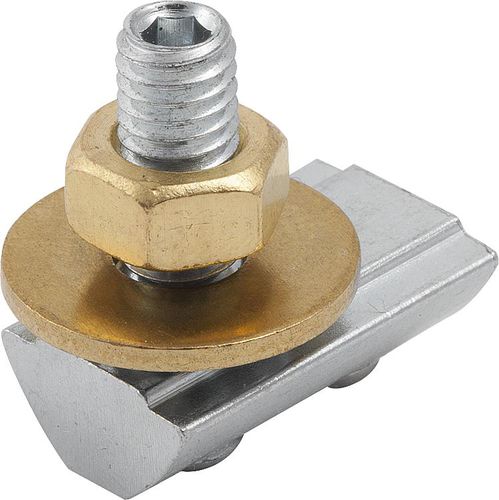

Earthing terminal type I
Material:
Slot key, grub screw and serrated washer, steel.
Nut and washer, brass.
Version:
Slot key, grub screw and serrated washer, galvanised.
Note:
For protecting installations and persons. Connectors for earthing aluminium profile structures and interconnecting the aluminium profiles by integrating them into the protective conductor system. Conductive contact is established through defined destruction of the oxide layer in the slot base and on the slot flanks.
The cable lug must be positioned between the serrated washer and the washer during assembly.
