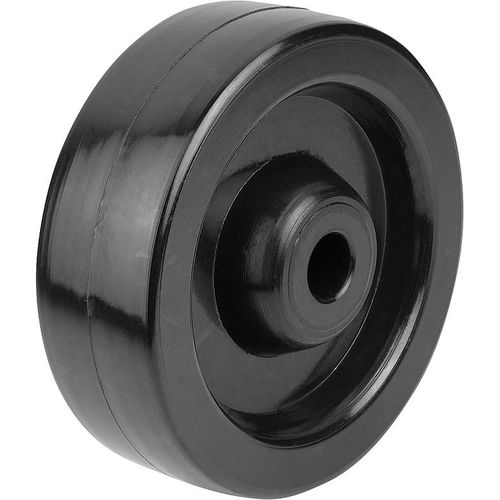

Monobloc wheel 95065
phenolic resinheat-resistant

monobloc wheel
monobloc wheel
monobloc wheel
Add to favorites
Compare this product

Go to the norelem - Éléments standard mécaniques website for more information

Characteristics

Type
monobloc
Hub material
phenolic resin
Other characteristics
heat-resistant
Load capacity

100 kg, 150 kg, 200 kg, 275 kg, 300 kg
(220 lb, 331 lb, 441 lb, 606 lb, 661 lb)

Diameter

75 mm, 100 mm, 125 mm, 150 mm
(2.95 in, 3.94 in, 4.92 in, 5.91 in)

Tread width

28 mm, 30 mm, 38 mm, 46 mm, 50 mm
(1.1 in, 1.18 in, 1.5 in, 1.81 in, 1.97 in)

Description

Duroplast wheels heat-resistant Description Material:Duroplast PF. Version:Hardness Shore 90D, black. Notch impact strength ca. 2.5 kJ/m². Note:Duroplast wheels for high-heat sectors, with exceptional running characteristics on smooth floors. Excellent chemical resistance to many aggressive types of media. Typical uses are in hot plants, paint shops, bakers and smoking ovens. Higher abrasion is unavoidable on rough floors. Running against curbs or bumps should be avoided due to the limited mechanical durability of phenolic resin.Temperature range:-35°C to +260°C, short-term up to +300°C.
