DC motor 85000-10

stepperlow-noiseintegrated-drive

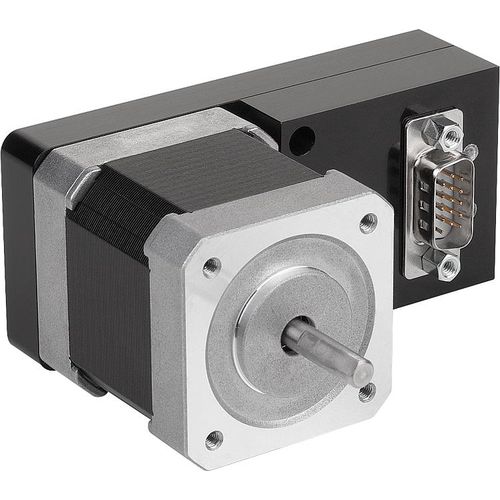

Stepper motor with integrated positioning control Version: 2-phase high-torque stepper motor in NEMA 17 (42 mm) size and 1.8° increment angle (full increment) with integrated position control. Note: Stepper motor with integrated positioning control. A convenient unit consisting of stepper motor and intelligent controller. Reference travel is possible on a block with reduced electric current without proximity switch. Integrated rotational monitoring. Smooth running through dynamic switching of increment trip. Actuation via single I/O interface, 31 position configurations and call-ups. Control unit can be parametrised quickly and conveniently with the software. The software and manual for programming the positioning control are available as free of charge download. Technical data: Control voltage: +24 V to +36 V DC Motor voltage: +24 V to +48 V DC Interfaces: Digital I/0-BAC, frequency/direction Retaining torque: up to 0.45 Nm Rotor moment of inertia: 0.068 kgcm² Current drop: adjustable Inputs: 6 (+24 V to +36 V DC) Outputs: 2 (+24 V) Application temperature: 0 °C to +50 °C Application: Converter: USB to RS-232 (9-pin SUB-D connector). This USB stick transfers serial data with TTL level to the PC or notebook via the USB interface. Length ca. 500mm with 1.8 m USB extension cable. Adapter: 15-pin SUB-D socket to 15-pin SUB-D connector and 9-pin SUB-D socket, length approx. 170 mm. Connection cable: 15-pin SUB-D HD socket, length 5 m. Drag-chain compatible.
