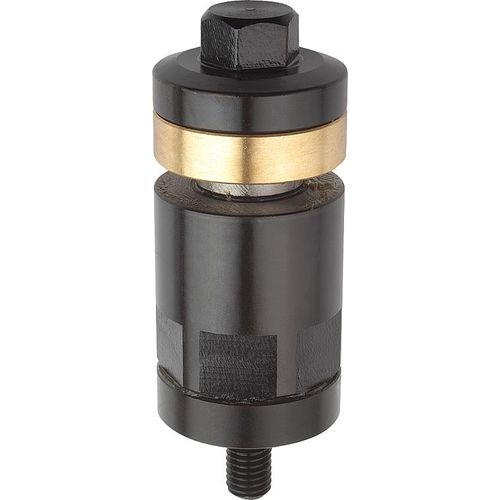

Clamping bolt 04395

lockingwith hexagonal headsteel

Clamping bolts Description Material: Clamping bolt, steel; clamping ring, brass Version: Clamping bolt, hardened and black oxidised. Clamping ring, bright. Note: The clamping bolts can be fixed to the machine table directly with T-slot nuts. Clamping parallel to the table is guaranteed by low tolerance classes (js6) for the height. The clamping range is 8 – 40 mm. Clamping screws for the ranges 40 – 67 and 65 – 87 mm are also available. The intermediate plate prevents damage to the machine table, as well as shifting during tightening. The brass clamping ring prevents impressions on the workpiece.
