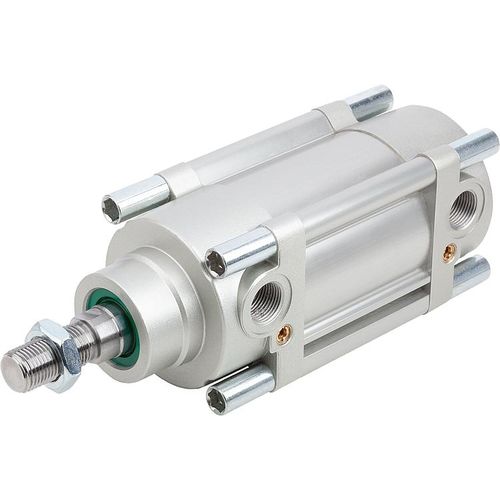

Pneumatic cylinder 12000

double-actingaluminumISO 15552

Pneumatic cylinder DIN ISO 15552 standard cylinder Description Material: Cylinder tube: aluminium. Endcap: die-cast aluminium. Piston rod: carbon steel 1.0503. Piston and piston rod seal: polyurethane. Version: Cylinder tube: anodised. Endcap: painted. Piston rod: hard trivalent passivated. Note: Double-acting pneumatic cylinder in construction-optimised design acc. to DIN ISO 15552. Piston rod with external thread, position detection and adjustable pneumatic damping. Due to their robust construction, these cylinders are the preferred choice for numerous applications. Technical data: Operating principle: double-acting. Operating medium: filtered and dried air, oiled or not oiled. Operating pressure: 1 to 10 bar. Damping: pneumatic damping on both sides, adjustable. Mounting position: arbitrary. Position detection: can be used for proximity switch in T-slot from above. Pneumatic connection: DIN EN ISO 228/1. Temperature range: -20 °C to +80 °C.
