Operating handwheel 06278-02 series

solidswing-handlealuminum

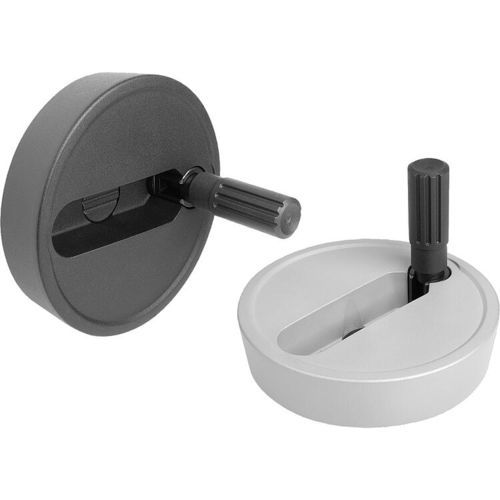

Disc handwheels, aluminium with fold-down cylindrical grip Material: Handwheel aluminium. Cylinder grip and hub cover black thermoplastic. Cylinder grip pin black oxidised steel. ISO 4027 grub screw, steel grade 45 H, black. Version: Black or silver powder-coated. With reamed hole. With reamed hole and keyway. With reamed hole and transverse bore. With reamed hole, keyway and transverse bore. Note: Wheel rim radial and axial run-out ≤ 0.4 mm. Assembly: The hub cover is supplied unassembled. The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer 07375. By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw. Accessory: 07375 Handwheel washers. 07161 Socket head screws with low head DIN 6912. Supplied with Aluminium handwheel. Hub cover. Fold-down cylinder grip. ISO 4027 grub screw (type with transverse bore). Drawing reference: 1) Position of the transverse bore to the keyway is offset by 90°.
