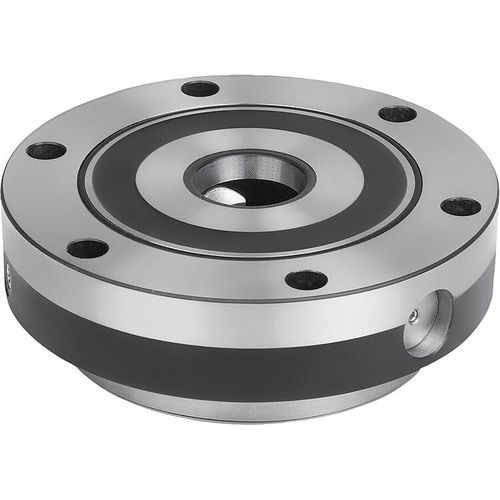

Modular zero-point clamping unit 42780-15-176390

steelfor 5-axis machiningpneumatic

UNILOCK clamping module ESM 176 MATERIAL Steel. VERSION Contact faces case-hardened and ground. NOTE The UNILOCK clamp modules can be mounted in any position, with or without projection on machine tables or as part of fixtures (plates, cubes, towers etc). The pneumatic control of the clamping modules can be carried out independently or together,thus an individual zero-point clamping system can be fabricated.The modular design allows the number of and distance between the clamp modules to be ideally adjusted to suit the clamping task. The set-up times are significantly reduced and so the running times of the machines are extended. The high clamping forces are generated by the integrated spring package (the unit is clamped without constant air pressure). The release process is pneumatic. Even in the event of a pressure drop or fluctuations in the compressed air supply, the full traction force is maintained. All clamping modules have a turbo function included as standard. A short air impulse at the "Turbo" air port increases the normal traction force, achieved by the springs, significantly. Consequently, the clamping modules can also be used for heavy-feed machining.
