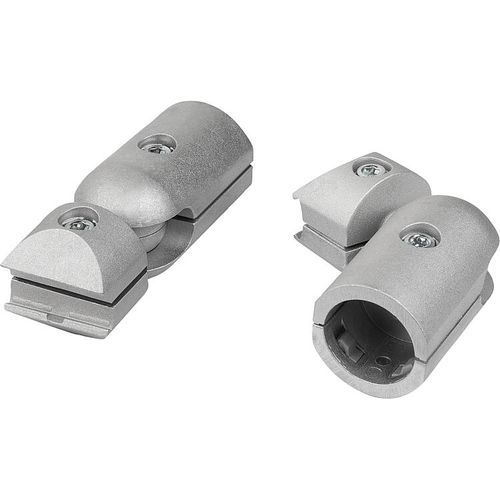

Articulated tube connector 10901-30

cast aluminumadjustable

Ball connector Ø30 type I with rotation lock Material: Die-cast aluminium. Mounting parts steel. Version: Bright. Mounting parts electro zinc-plated. Note: Suitable for round tubes and profile tubes with 30 mm OD. For variable connections. The ball connector can be swivelled through 180°. This makes it suitable for connections in any spatial arrangement. Struts and diagonals can be constructed at any angle using the Ø30 ball connectors. With the ball sitting in a ball seat, the connector can be rotated into the desired position and secured with a single screw. The ball connector has an integrated, high-load rotation lock. It ensures exact and permanent alignment of Ø30 profile tubes. If required, the rotation locks can be removed using a flat-blade screwdriver. This is necessary to secure Ø30 round tubes in the ball connector. Supplied with 2 Ball connector half ball ends. 2 Ball connector half ball seats. 2 DIN EN ISO 4762 (DIN 912) M6x28 screws, electro zinc-plated. 2 ISO 10511 M6 self-locking nuts, electro zinc-plated. Articles are supplied pre-assembled.
