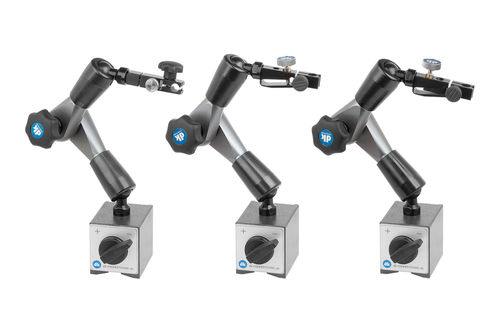

Support articulated arm 31100-10

Articulated joint, aluminium with magnetic base Material Articulated arm aluminium. Ball and ball seat steel. Dial gauge holder steel. Magnet steel. Version Dial gauge holder ferritic nitrocarburised. Articulated arm anodised. Note 3D articulated joints from norelem represent perfect measurements down to the μ range, maximum ease of use, perfect stability, maximum retaining forces, perfect reliability and absolute durability. The articulated joints consist of a magnetic base which is a switchable permanent magnet with a ground, prismatic base and flat, precise rear side, an articulated joint with central mechanical clamping for one-handed operation and a fine or micro-adjustable dial gauge holder. With the articulated joints, the joints are not clamped simultaneously, but one after the other from bottom to top. The tension is released in reverse order. This significantly increases ease of use during fine adjustment. It also prevents damage to the joints. The joints are clamped purely mechanically, which guarantees a long service life and complete maintenance-free operation. Sudden pressure drops under differing temperature conditions can be ruled out. Clamping over longer periods is easily possible.
