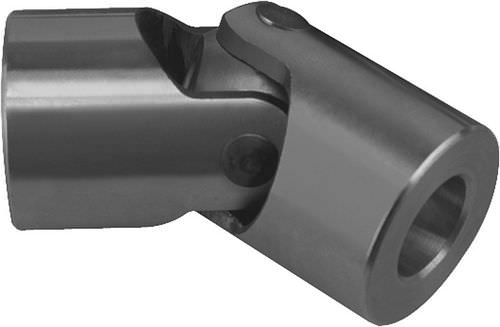

Single universal joint 23403steel
Add to favorites
Compare this product
Characteristics
- Configuration
- single
- Material
- steel
- Diameter
Min.: 6 mm
(0.24 in)Max.: 25 mm
(0.98 in)- Torque
Min.: 7 Nm
(5.1629 ft.lb)Max.: 210 Nm
(154.8881 ft.lb)- Operating angle
Min.: 0 °
Max.: 45 °
- Speed
Min.: 0 rpm
(0 rad.min-1)Max.: 150 rpm
(942.5 rad.min-1)
Description
Norelem's 23403 Cardan Single Joints with Slide Bearings are manufactured out of steel materials, and feature hardened joint and slide bearing surface finishes. The joints showcase total transferable torque rates at 150 rpm, operating angles that approximate < 5", and bore hole depths smaller than DIN 808. They are capable of 45" swivel functions.
