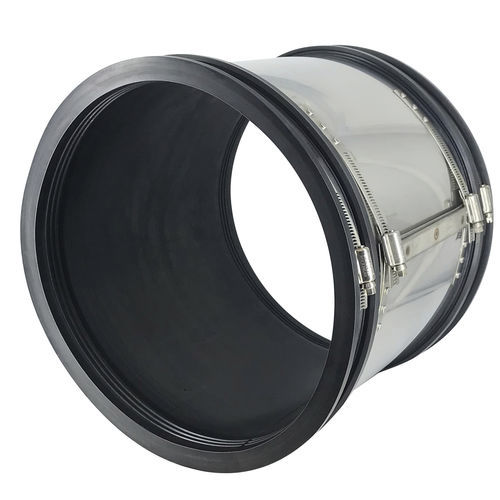

Renewal bushing FLEX-SEAL Plus® XL
connectionspliceleak-proofing

renewal bushing
renewal bushing
renewal bushing
renewal bushing
renewal bushing
Add to favorites
Compare this product


Characteristics

Function
connection, splice, leak-proofing
Connection type
female-female, screw
Material
stainless steel, EPDM, rubber
Product applications
for pipe, water, renewal
Other characteristics
flexible, universal

Description

Flex-Seal Plus XL extra-width flexible couplings come in nominal bores from 300600mm. The 300mm width allows for greater tolerance in the cutting of the pipe ends as well as providing for greater movement of the joined pipes due to settlement or thermal movement. Made from EPDM and grade 1.4301 (304) stainless steel, the Flex Seal Plus XL coupling withstands temperatures from −40°C to +140°C. It can be used with working pressures up to 1.5 bar and 1.5 deg. angular deflection. Like all other couplings in the range, Flex Seal Plus XL is suitable for use in sewerage, drainage and other non-pressure pipe systems and can be installed in both above and below ground pipe networks.
