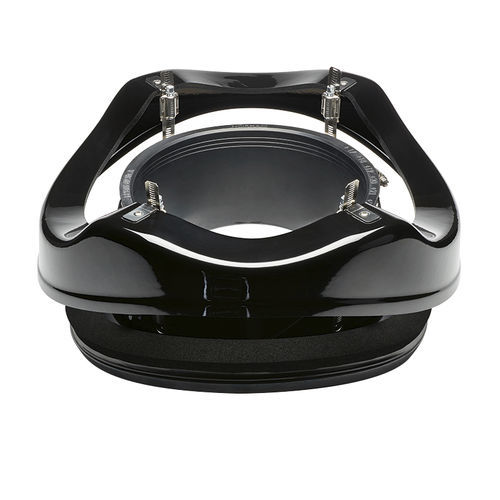

Branch saddle T-FLEX® MULTI

for tubesstainless steelT-form

T-SADDLE MULTI is a multi-material T-Saddle, intended for all gravity flow networks (rainwater or sewage), it works with : Corrugated pipes ; Or smooth pipes : PVC / PP / GRP / cast iron / clay / concrete. It’s an « all-in-one » solution : thanks to his patented system, one reference for several main pipes (NORHAM Patent No. 3324093). Materials : upper and lower saddle : polyester isophthalic resin reinforced with glass fibers ; clamp and locking system : 304 stainless steel ; body : EPDM compact 60 Sh with additional foam seal. The T-SADDLE MULTI meets the requirements of NF EN 476 : Watertightness at 0,5 bar = Pressure Service (PS)*. Angular deflection : ±10°.
