- Flange sight glass
- NORIS Armaturen Burkenstein GmbH & Co. KG

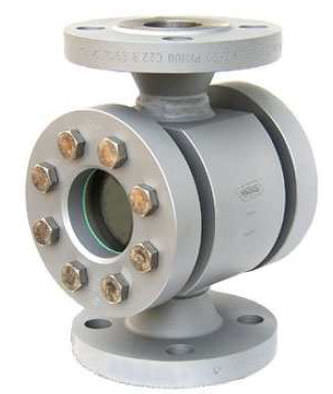

Borosilicate glass sight glass Bauform 912flange
Add to favorites
Compare this product
Characteristics
- Specifications
- borosilicate glass, flange
- Operating temperature
Min.: 0 °C
(32 °F)Max.: 500 °C
(932 °F)- Operating pressure
Min.: 0 bar
(0 psi)Max.: 160 bar
(2,321 psi)
Description
Application:
The flow indicators are used for optical control of
fluids and gases, for horizontal and vertical pipe lines.
Operating conditions:
Working pressure: up to 160 bar
Woikmg temperature: with borostlicate glass max. 280T;
with quarzglass up to 50013
Installation:
Optional
Possible Connection:
Flange connection acc. to DIN up to PN 160
Flange connection acc to ANSI up to 1.500 LBS
Butt weld ends
Female-threaded
Dimensions:
Working pressure and nominal diameter have an affect
on the length.
Options:
with - ANSI-flanges
- Butt weld ends
- Heating jacket
- Sight glass light - fittings
Catalogs
912
1 Pages
