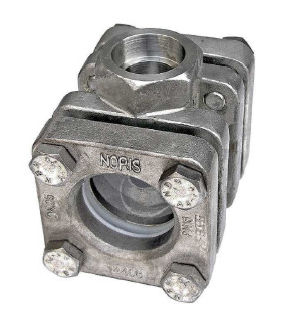

Stainless steel sight glass Bauform 880-SOWweld-on
Add to favorites
Compare this product
Characteristics
- Specifications
- stainless steel, weld-on
- DN
Max.: 100 mm
(3.9 in)Min.: 15 mm
(0.6 in)- Operating temperature
150 °C, 280 °C
(302 °F, 536 °F)- Operating pressure
15 bar, 25 bar, 40 bar
(218 psi, 363 psi, 580 psi)
Description
Application:
The flow indicators are used for optical control of
fluids and gases, for horizontal and vertical pipe-
lines Also available with internal spinner or flap
Operating conditions:
Working pressure: 16 / 25 / 40 bar
Working temperature: 150*0 or 280*0
Installation:
Optional. Take care of flow direction
Options:
with Rotor or Rap
with Sight glass light - fittings
Materials:
Cast Steel GS-C 25 ( 1.0619 / GP240GH )
Stainless Steel WN 1.4408
