- NORIS Armaturen Burkenstein GmbH & Co. KG

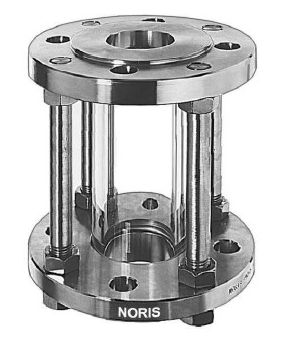

Borosilicate glass sight glass Bauform 20steelflange
Add to favorites
Compare this product
Characteristics
- Specifications
- borosilicate glass, steel, flange
- DN
Min.: 15 mm
(0.6 in)Max.: 200 mm
(7.9 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 200 °C
(392 °F)- Operating pressure
10 bar, 16 bar
(145 psi, 232 psi)
Description
Application:
Sight glass - Tubular type with flanges on both sides to use
in either horizontal or vertical pipe lines for optical control of
fluids and gasses.
Operating conditions:
Connection: Flanges PN 10 /16
Pressure: up to DN 100 - 6 bar max
DN 125 and up - 4 bar max
Temperature: 200X max.
Installation:
Optional
Special designs:
Protection jacket of acrylic glass
ANSI - Flanges
Extra length
