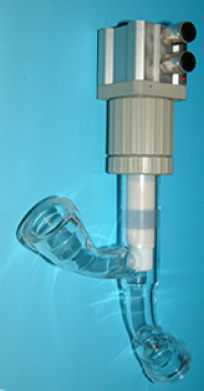

Pneumatically-operated valve
for controlfor compressed airborosilicate glass

Pneumatically-operated valve - NORMAG Labor- und Prozesstechnik GmbH - for control / for compressed air / borosilicate glass

Add to favorites

Compare this product

Characteristics

Operation

pneumatically-operated

Function

for control

Media

for compressed air

Body

borosilicate glass

DN

15 mm, 25 mm
(0.591 in, 0.984 in)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 200 °C
(392 °F)

Description

Characteristics: Corrosion resistant, product contact only with PTFE and DURAN only Robust and well-established NORMAG-valve technology Wide operating range for temperature and pressure Compact design, very suitable for laboratory and pilot plants Suitable for explosion-proof zone, optional electrostatic deflectable Compressed air control, double effecting Construction and connection type: Construction: Straight-through valve Edge valve Bottom outlet valve Connection type: Flat or oblique tube ends Glass thread connection GL 14,18 und 25 Schott type buttress end, DN 15 und 25, male, female and flat shape Safety flat buttress end, DN 15 und 25
