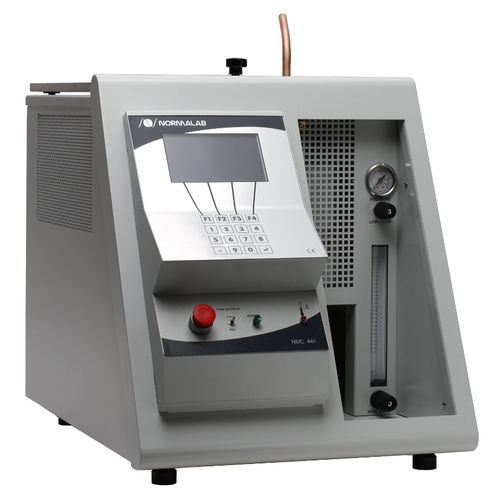

Petroleum analyzer NMC 445

carbonfor the petroleum industrytrace

Fully automated, the NMC 445 provides all safety requirements for a simple measurement of carbon residue formed after evaporation and pyrolysis of petroleum products. Very easy to use, the NMC 445 gives the possibility to check the nitrogen flow on a front panel. Its software offers to create additional methods in addition to the 2 pre-set methods. CHARACTERISTICS ° Automatically controlled atmosphere ° Automatic calculation of % carbon residue or ash (required balance) ° Quick control of nitrogen flow rate on front panel ° 2 pre-set methods + 18 additional ones with 4 heating segments each ° Test reports including initial weight and results SECURITY • Over-heating protection ACCESSORIES Gas connection kit Desicator DELIVERED WITH • 12 x 2 ml sample vials • 6 x 16 ml sample vials • 3 vial holders : 12 places, 6 places, 7 places • 1 Cleaning cable • 1 Hook for safe hot lid manipulation TECHNICAL DATA Power supply : 230 V – 50/60 Hz – 16 A Dimensions : 430x630x480mm Weight : 35 kg RECOMMENDATIONS Filtered Air and Nitrogen purity 99,998% : 2,5 bar max each
